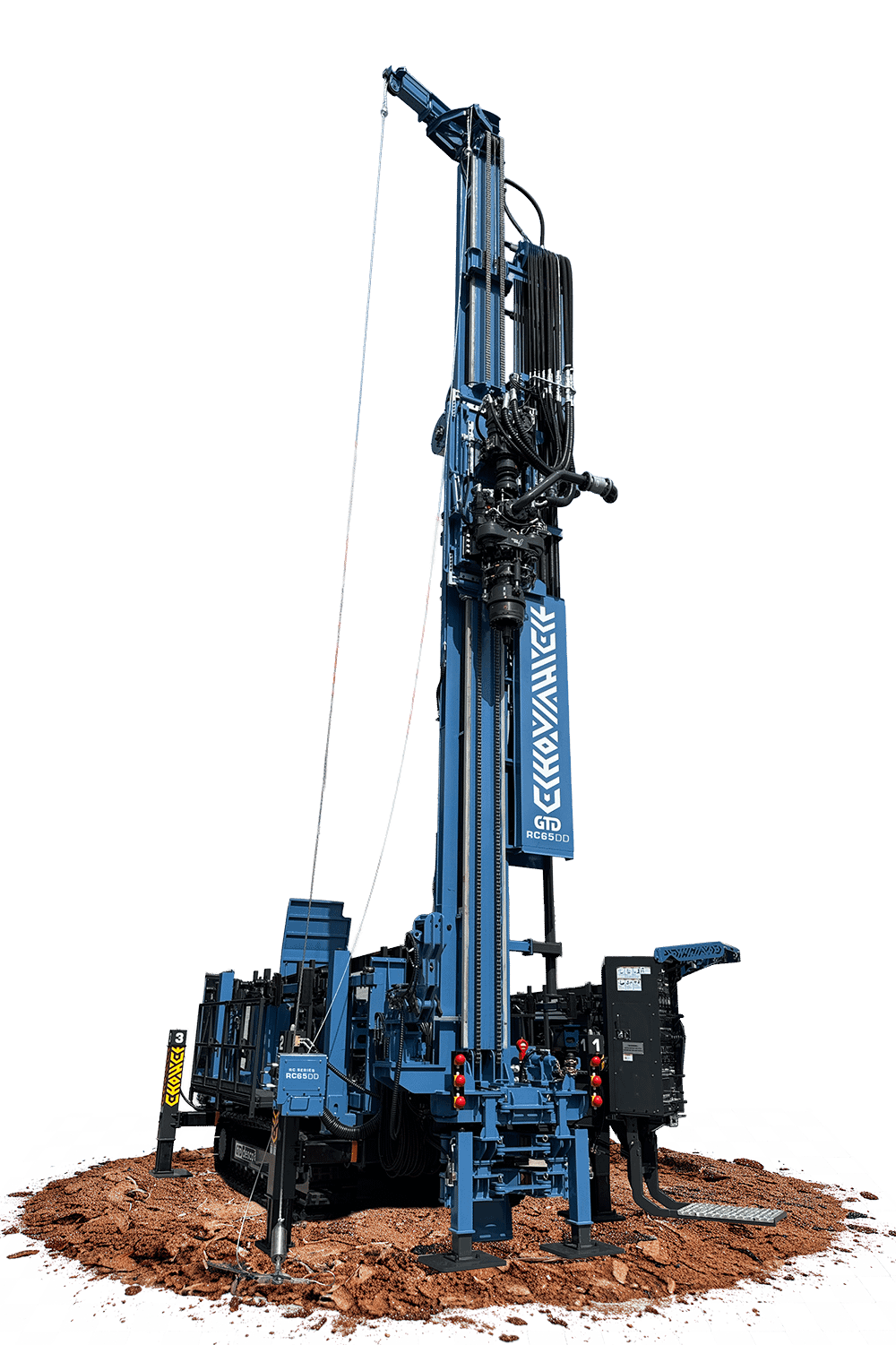

X65DR DRILLING RIG

The X65DR builds on the trusted performance of our GT SERIES, offering unparalleled efficiency and safety in Exploration drilling. With the innovative double-headed design, the X65DR ensures borehole stability even in the most challenging formations and able to reach depths beyond 2,600 feet (800 m).

The X65DR comes complete with our unique rod rack and loading system, the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.

DOWNLOAD SPEC SHEET

Built with

65,000 LBS
PULL-BACK
513HP
CUMMINS ENGINE
20FT DRILL RODS
600FT ON BOARD RODS
EURODRILL TOP DRIVE – RH24X
TORQUE OF 17,700 LB-FT
EURODRILL CASING HEAD – RH40X
TORQUE OF 29,500 LB-FT

SPECIFICATIONS

DIMENSIONS & WEIGHT

Length 41’ (12.5m)
Width 8’ 2” (2.5m)
Height 10’ 3” (3.2m)
Weight 66,000 lbs – 77,000 lbs(30,000 kg – 35,000 kg)(Actual weight will vary depending on the options selected and installed, e.g. Rods…)

DERRICK & FEED SYSTEM

55,000 lbs – 66,000 lbs (25,000 kg – 30,000kg) pull-back
26,455 lbs (12,000 kg) push-down
24’ 6” (7.5 m) top head stroke

DRILL PIPE & CASING

4½” (114.3 mm) × 20’ (6 m) 30 rod capacity – 600’ (180 m) (OTHER SIZES AVAILABLE)
Max diameter 12½” (320 mm) Casing head up to 8” (219MM)

CRAWLER (TRACK) BASE

Doosan Solar 130
Steel with rubber pads
Wireless remote travel

ROTARY DRILL HEAD - EURODRILL RH24X

EA61V head motors
Swivel with 5” thru-hole
220rpm at 3,319 lb-ft (4.5 kNm)
77rpm at 9,293 Ib-ft (12.6 kNm)
Floating spindle (shock absorber)

CASING HEAD - EURODRILL RH40X

Rotation: 180 rpm
Torque 29,500 lb-ft (40 kNm)
Dual Head Tip Out System
Head 30° Angled Tip Out System
Diverter: 4” (102 mm) with Hydraulic adjustable compression
Chuck: 4½” (114.3 mm), 8” (219MM)

RC COMPONENTS

Blast Box
Blowdown Valves
Swivel
Sampling Spliter

ENGINE

Cummins X12 Tier 4 (Stage 5) 513 hp (377 kW)

GTD STANDARD FEATURES

Sideshift – Sliding Drill Head
Swivel & Floating Spindle Sub
Height Adjustable Working Table
Triple Clamps – One rotating
Hydraulic Centralizing Rollers
Hydraulic Breakout Chain Wrench
Auxiliary Hydraulic Ports and Controls
Main Winch – 22,000 lbs (10,000 kg)

Wire/Sandline Winch
Water Injection Mist Pump (MP75)
DTH Lube System
Rod Rack & Rod Loader
Jacks/ Outriggers
Air Compressor: 24 cfm (673 lpm), 130 psi (9 bar)
Tablet Computer & Engine Diagnostics Software
Sandline Winch Length 1,000’ – 6,500’ (300 m – 2,000 m)
Angled Drilling (45°)

OPTIONS

Hydraulic Sliding Rod Wrench
Safety Cage
Head 30° Angled Tip Out System
Hydraulic Welder & Generator (7.5 kW)

DOWNLOAD SPEC SHEET

Specs can be informative… Videos provide evidence…

It’s why we share real-world drilling footage to validate why our equipment is the No.1 choice for geothermal industry leaders. See for yourself below:

How deep can the X65DR drill?

Beyond 2,600 ft (800 m) — the deepest-rated rig we build. It was previously listed as the RC65DR.

Compare the X Series

What are the X65DR’s two heads?

A Eurodrill RH24X top drive with a 5 in thru-hole swivel and floating spindle, and a Eurodrill RH40X casing head delivering 29,500 lb-ft (40 kNm) at up to 180 rpm, taking casing up to 8 in (219 mm).

What rods does the X65DR carry?

Thirty 20 ft rods of 4½ in (114.3 mm) — 600 ft (180 m) — in the standard rod rack and loader, with other sizes available. For deep programs, a tracked carrier with its own rod rack brings more.

See the TC24 tracked carrier

What powers the X65DR?

A Cummins X12 Stage 5 engine rated at 513 hp (377 kW), with 65,000 lbs of pull-back, 26,455 lbs (12,000 kg) of push-down and a 22,000 lbs (10,000 kg) main winch.

Can the X65DR drill angled holes?

Yes — up to 45°, with a 30° angled head tip-out system for handling.

Is there a geothermal version?

Yes. The GT65DR is the same dual rotary platform set up for geothermal and water well work.

See the GT65DR

What support comes with the rig?

On-site commissioning and training by our North American and global service teams, a service kit covering the first 2,000+ operating hours, and parts stores in New Hampshire (USA), Ontario (Canada) and Tonbridge (UK). Remote diagnostics run through GTData, so our engineers can see what the rig was doing when you call.
