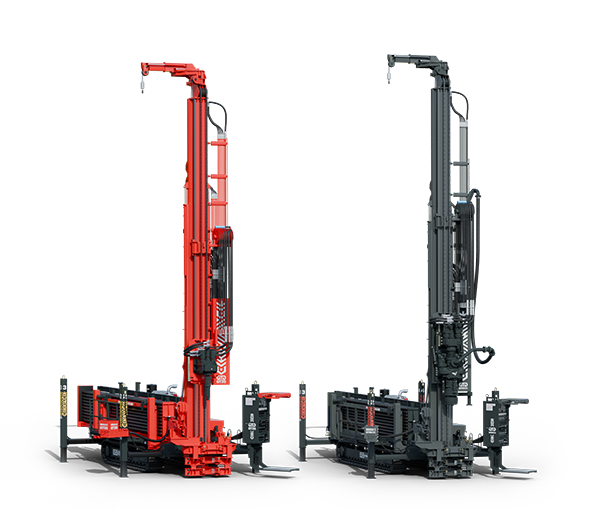

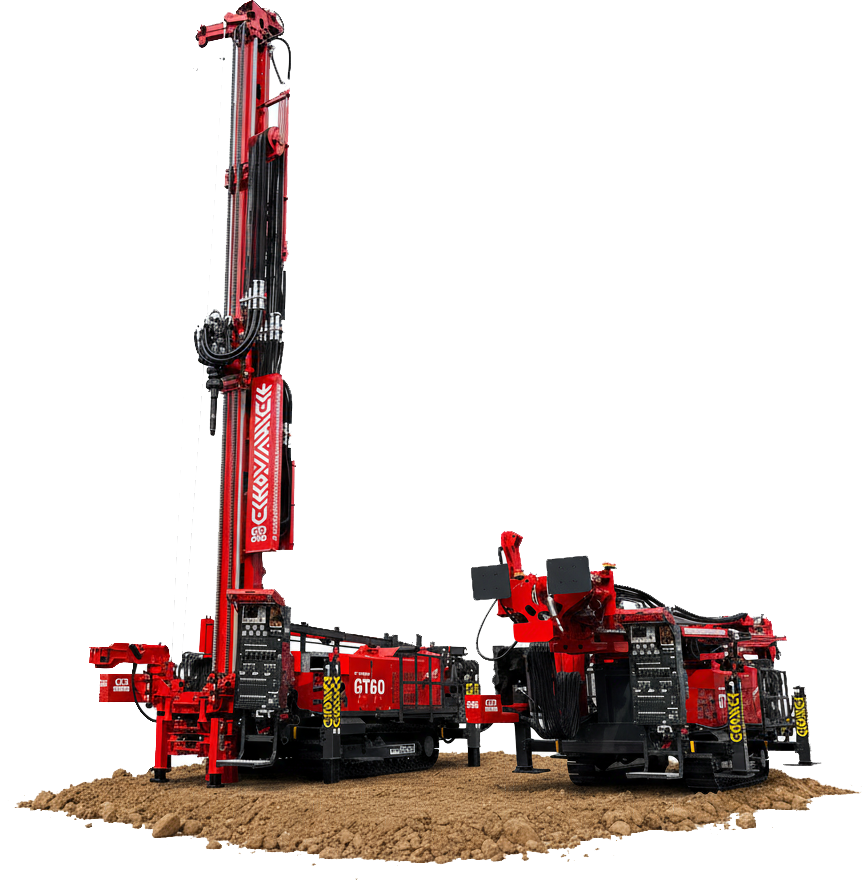

GEOTHERMAL DRILLING RIGS
The GT series drill rigs are proven for their high productivity in Geothermal and Water Well drilling in both domestic and commercial use. From our flagship Double-Head rig, featuring a Cummins X12 engine, to our smallest compact rig with Doosan power. All models are versatile machines, with full capability for Mud, Air or DTH drilling.

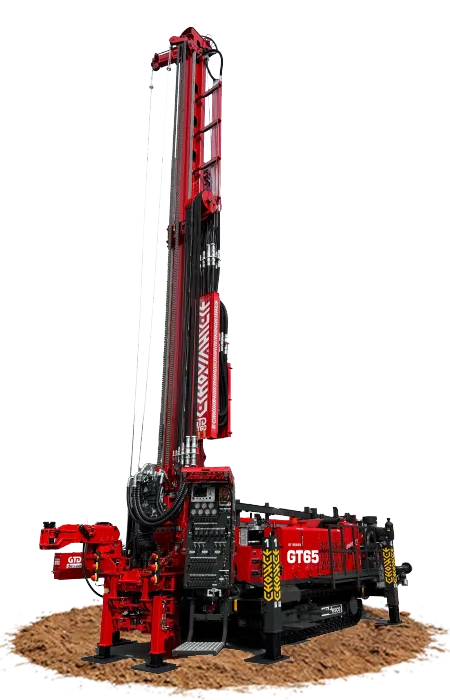

MORE INFOGT65
-
65,000 LBS
PULL-BACK -
513HP
CUMMINS ENGINE -
25FT DRILL RODS
1,200FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH24X
TORE OF 17,700 LB-FT -
DRILL BEYOND
1,000FT

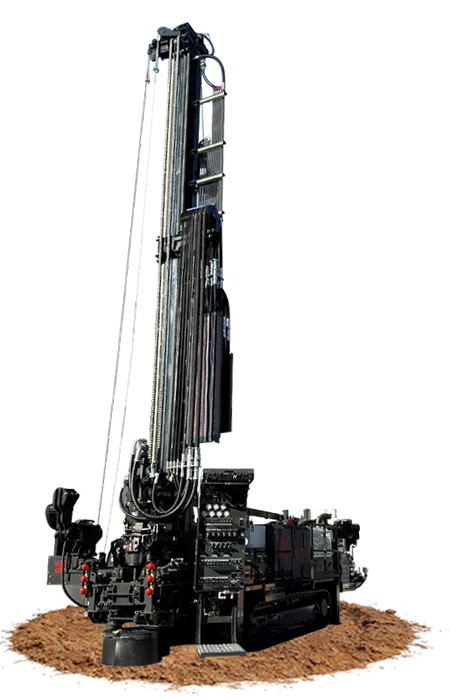

GT45
-
46,000 LBS
PULL-BACK -
380HP
CUMMINS ENGINE -
20FT DRILL RODS
880 FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH16X
TORE OF 11,897 LB-FT -
DRILL BEYOND
850FT

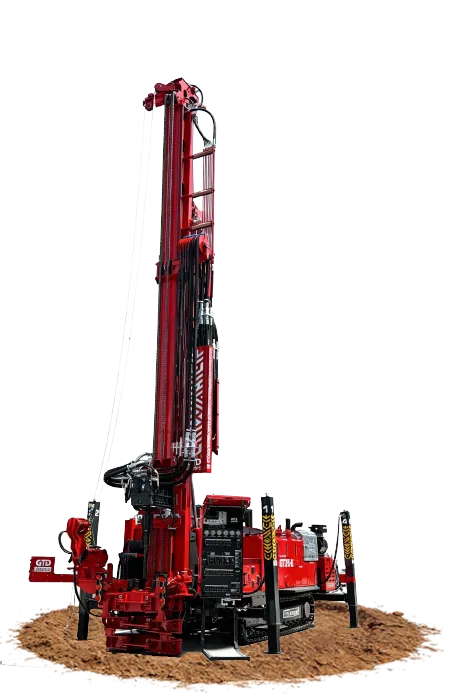

GT35
-
35,000 LBS
PULL-BACK -
290HP
DOOSAN ENGINE -
20FT DRILL RODS
880FT ON BOARD RODS -
DRILL BEYOND
650FT

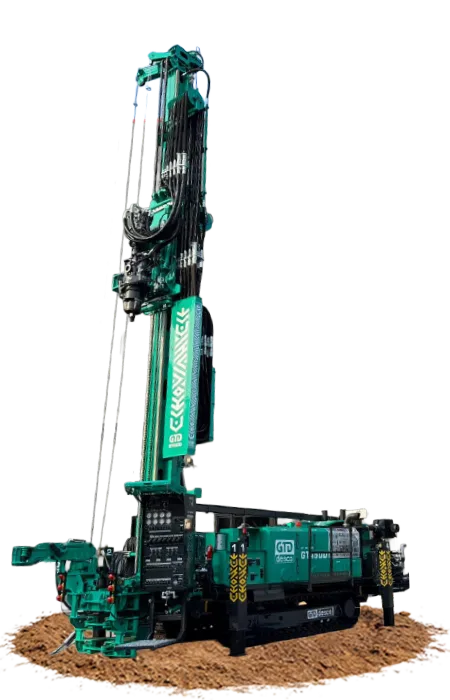

GT45DR
-
46,000 LBS
PULL-BACK -
380HP
CUMMINS ENGINE -
20FT DRILL RODS
880FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH16X
TORQUE OF 11,897 LB-FT -
EURODRILL CASING DRIVE – RH26X
TORQUE OF 14,976 LB-FT

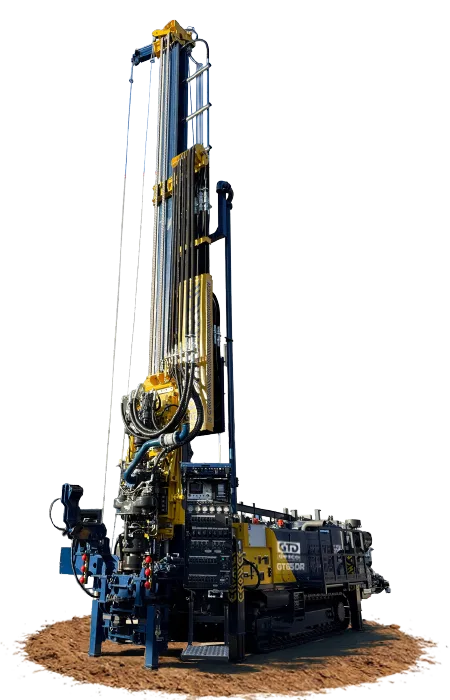

GT65DR
-
65,000 LBS
PULL-BACK -
513HP
CUMMINS ENGINE -
25FT DRILL RODS
1,200FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH24X
TORQUE OF 17,700 LB-FT -
EURODRILL CASING DRIVE – RH40X
TORQUE OF 29,500 LB-FT

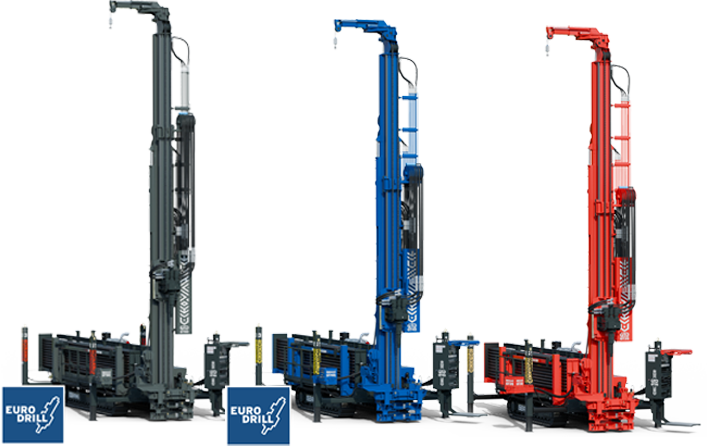

THE GT65DR, GT45DR, GT65 & GT45 RIGS ARE ALL FITTED WITH EURODRILL HEADS AS STANDARD, WIDELY ACCEPTED AS THE BEST ON THE MARKET
EXPLORATION DRILLING RIGS
The RC series drill rigs are proven for their high productivity in Geothermal and Water Well drilling in both domestic and commercial use. From our flagship Double-Head rig, featuring a Cummins X12 engine, and all with Metzke RC components. All models are versatile machines, with full capability for Mud, Air or DTH drilling.

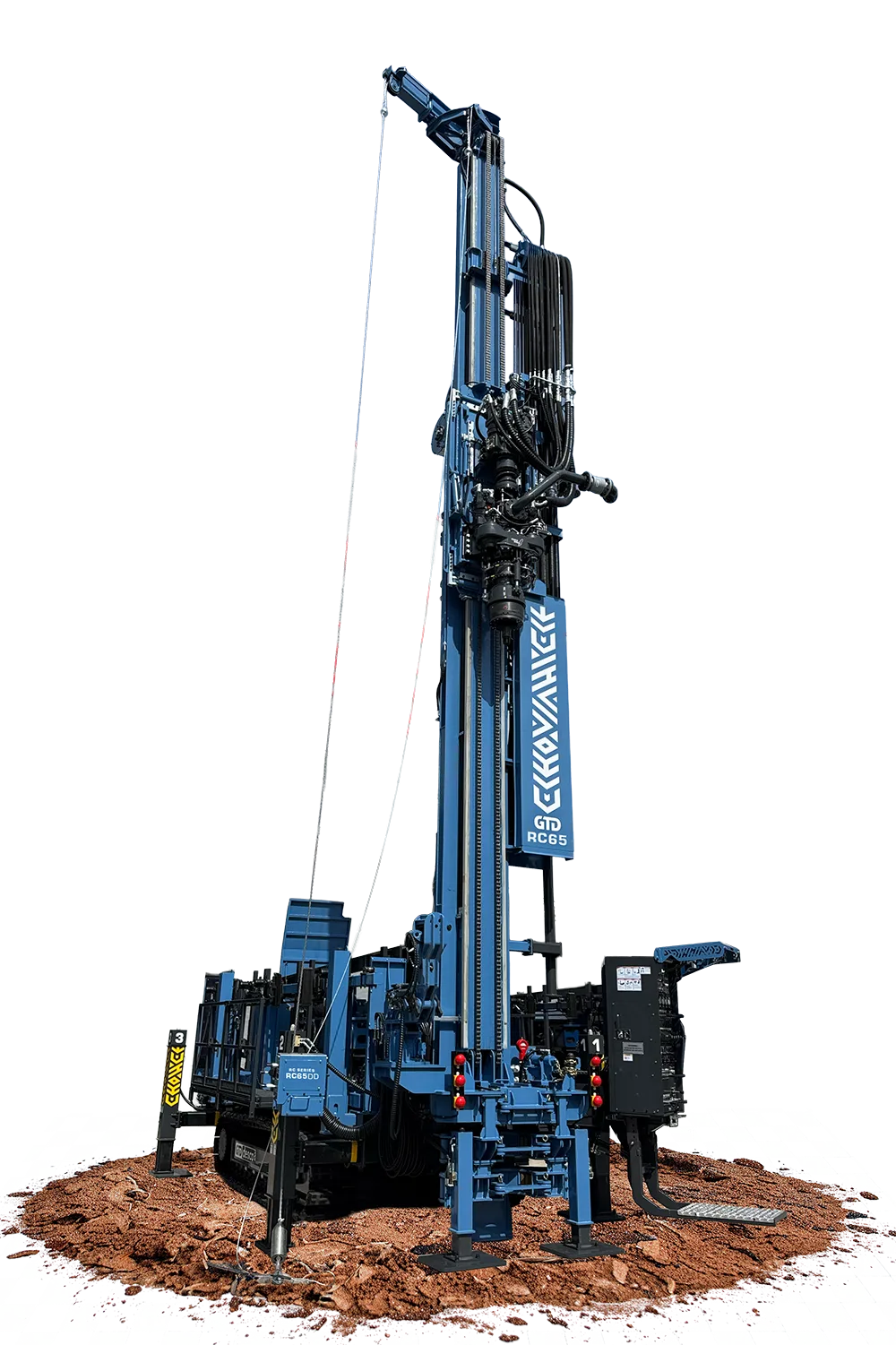

MORE INFORC65
-
65,000 LBS
PULL-BACK -
513HP
CUMMINS ENGINE -
25FT DRILL RODS
1,200FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH24X
TORE OF 17,700 LB-FT -
DRILL BEYOND
1,000FT

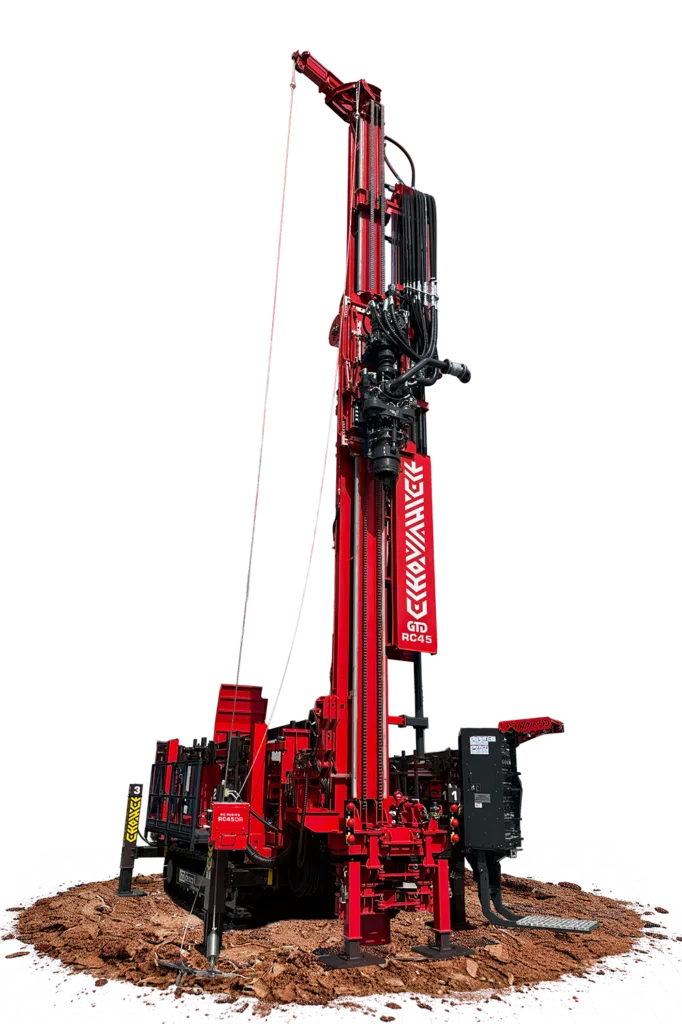

RC45
-
46,000 LBS
PULL-BACK -
380HP
CUMMINS ENGINE -
20FT DRILL RODS
880FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH16X
TORE OF 11,897 LB-FT -
DRILL BEYOND
850FT

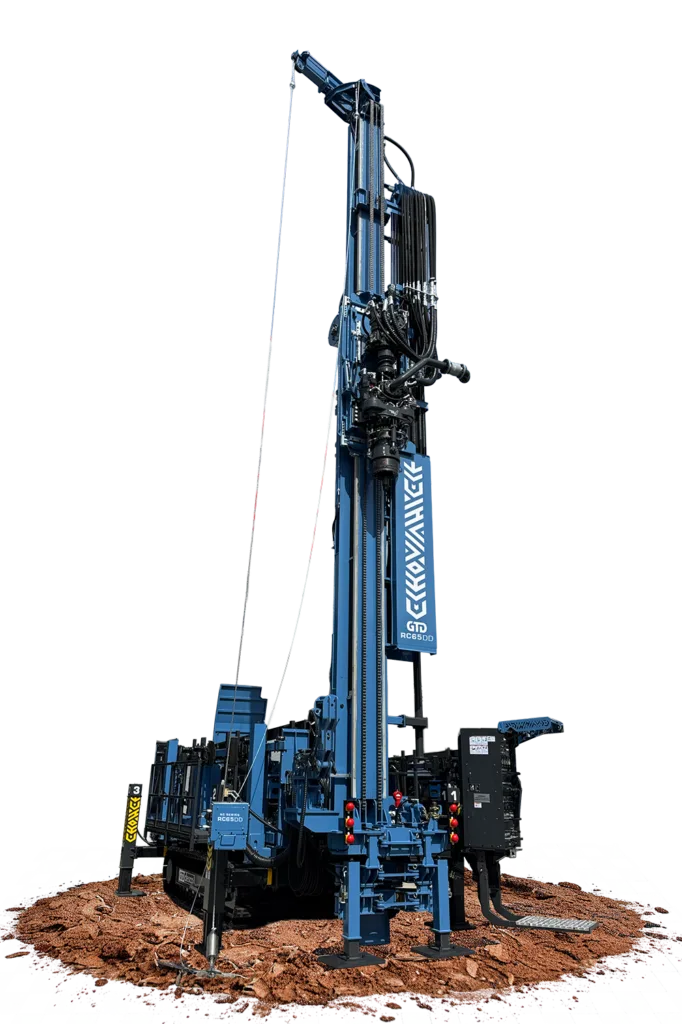

RC65DR
-
65,000 LBS
PULL-BACK -
513HP
CUMMINS ENGINE -
20FT DRILL RODS
600FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH24X
TORQUE OF 17,700 LB-FT -
EURODRILL CASING HEAD – RH40X
TORQUE OF 29,500 LB-FT

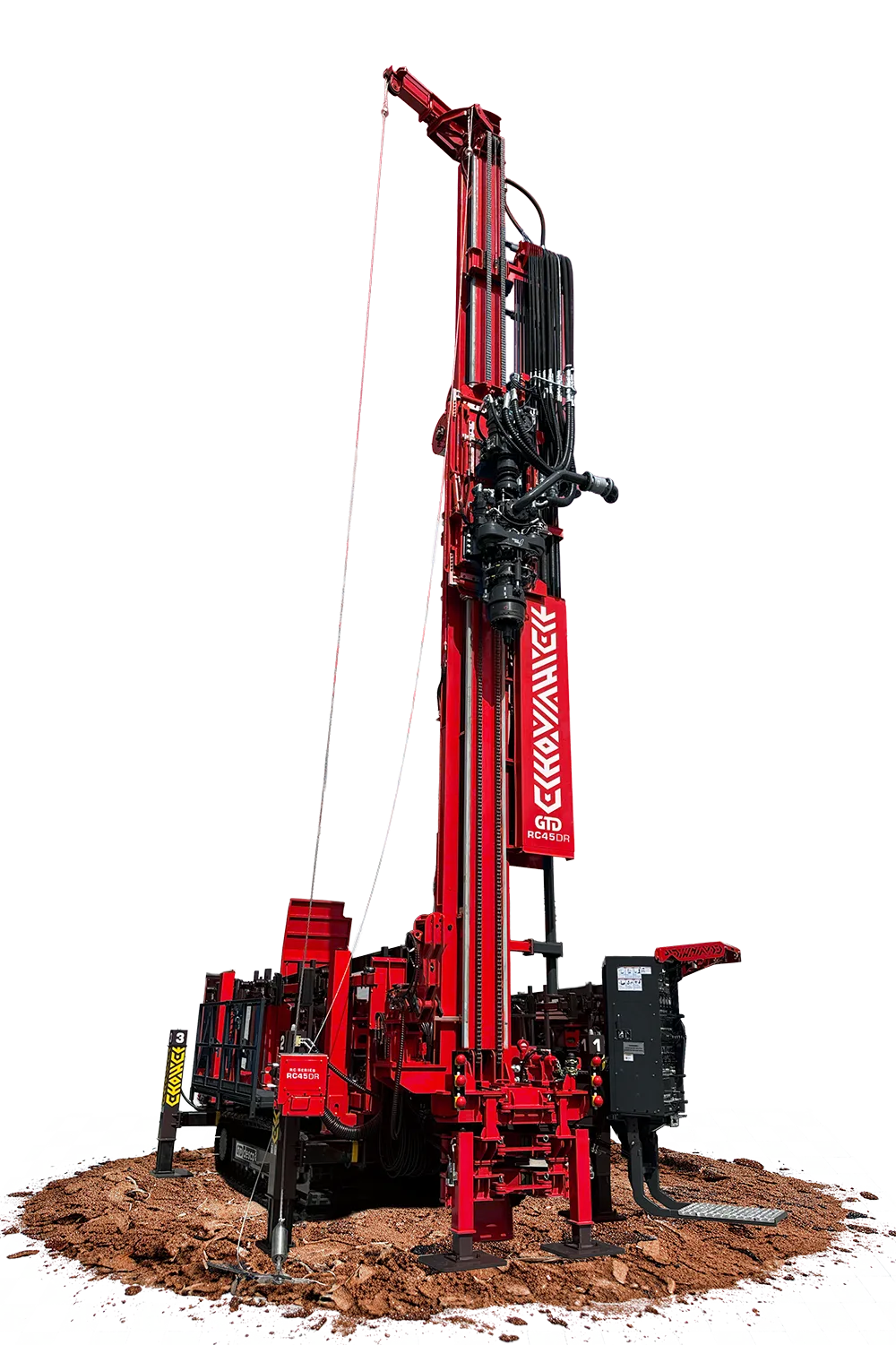

RC45DR
-
46,000 LBS
PULL-BACK -
380HP
CUMMINS ENGINE -
20FT DRILL RODS
880FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH16X
TORQUE OF 11,897 LB-FT -
EURODRILL CASING DRIVE – RH26X
TORQUE OF 14,976 LB-FT
Metzke’s RC components include blast boxes, blowdown valves, rotation-head RC discharge assemblies, and swivels.
THE RC65DR, RC45DR, RC65 & RC45 RIGS ARE ALL FITTED WITH EURODRILL HEADS AS STANDARD, WIDELY ACCEPTED AS THE BEST ON THE MARKET

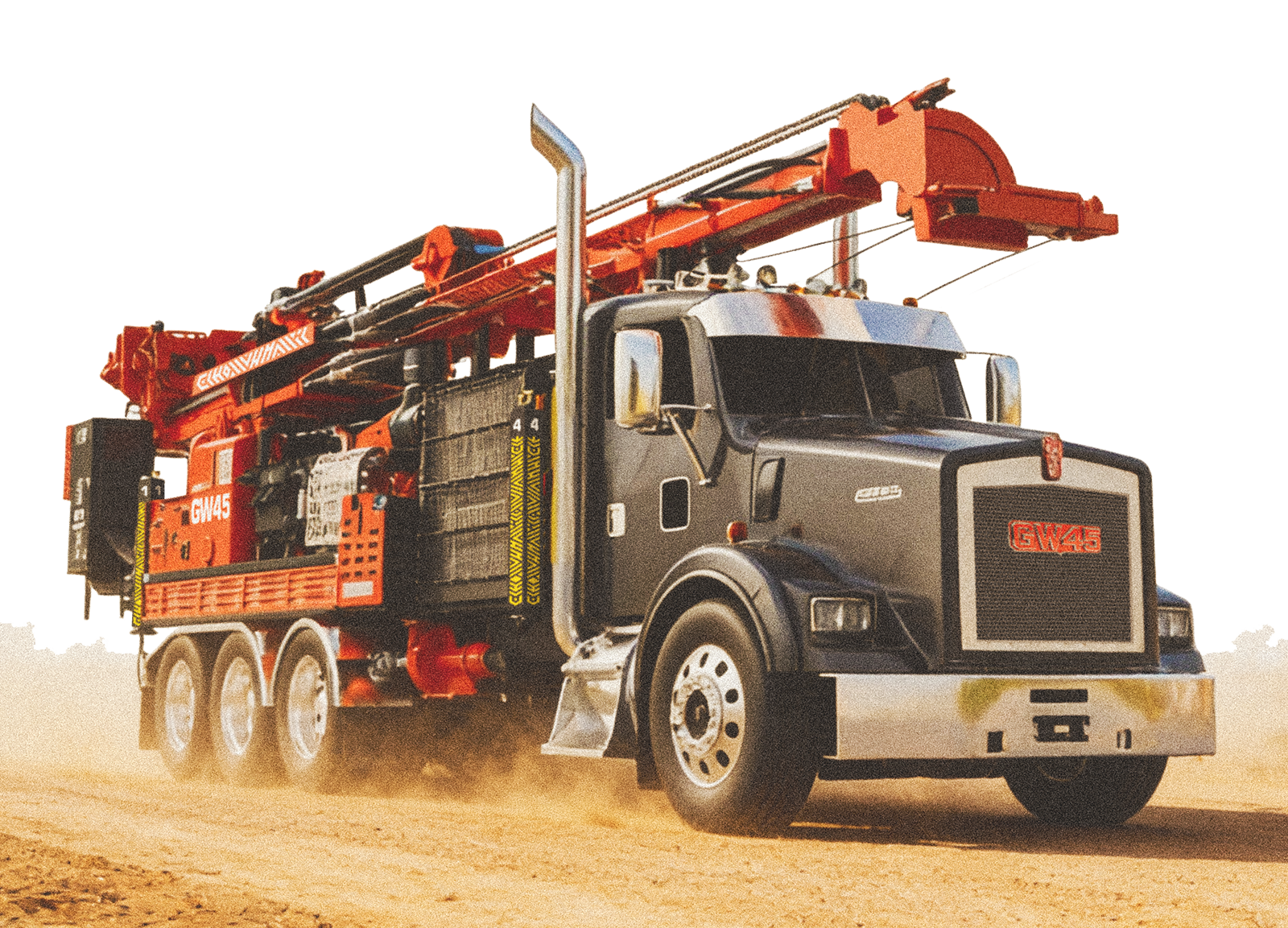

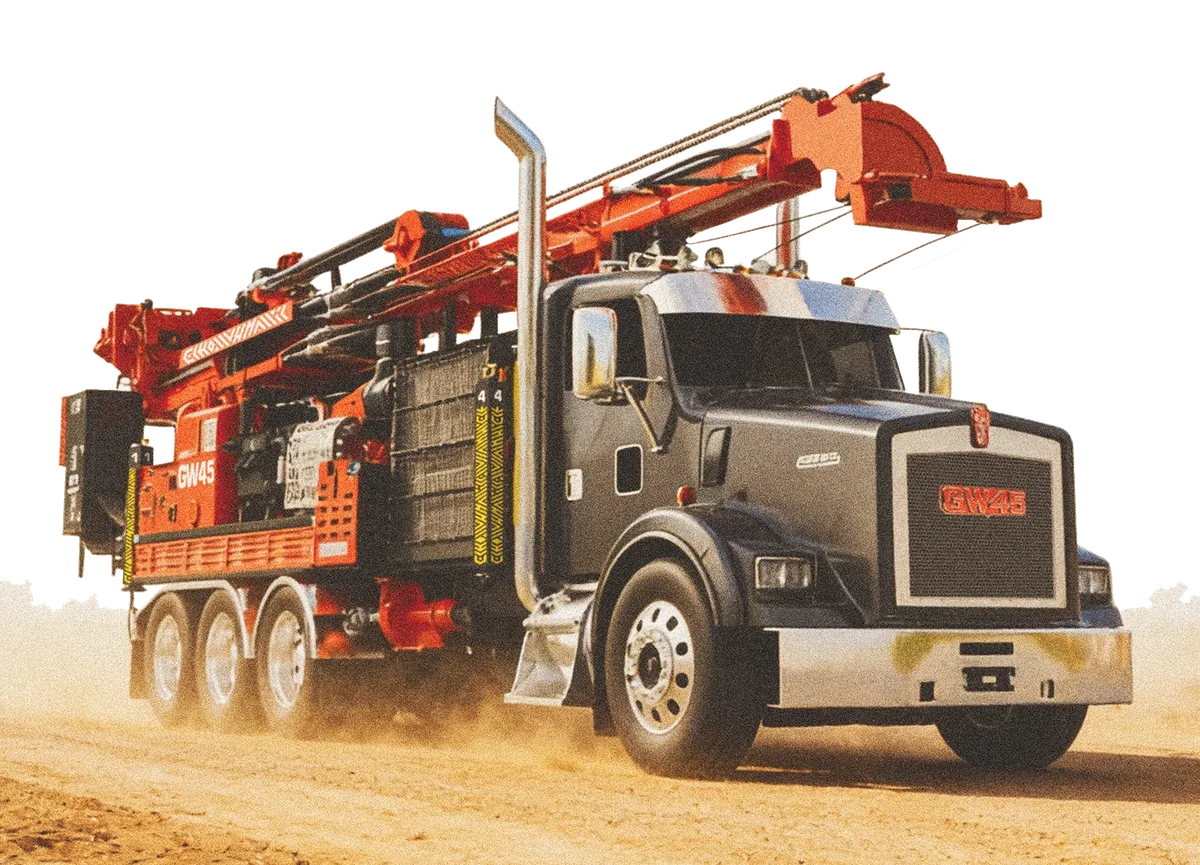

WATERWELL DRILLING RIGS
The GW Series is available in both single-rotary (SR) and dual-rotary (DR) configurations, allowing contractors to select the optimal setup for their drilling methods, ground conditions, and project requirements.
All GW Series rigs are true multi-method waterwell machines, capable of Mud Rotary, Air Rotary, or DTH drilling without compromise. Every model is equipped with our world-renowned rod rack and rod handling system
There’s more to a successful drilling operation than just the drill rig...

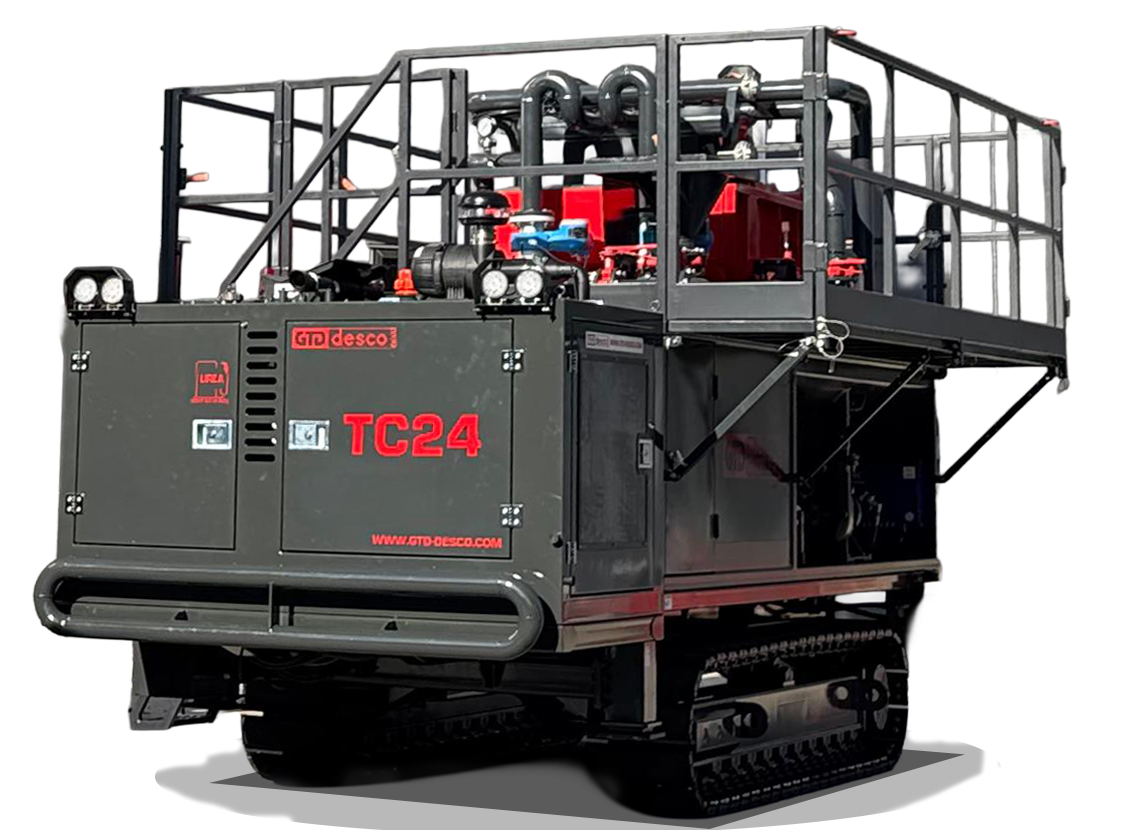

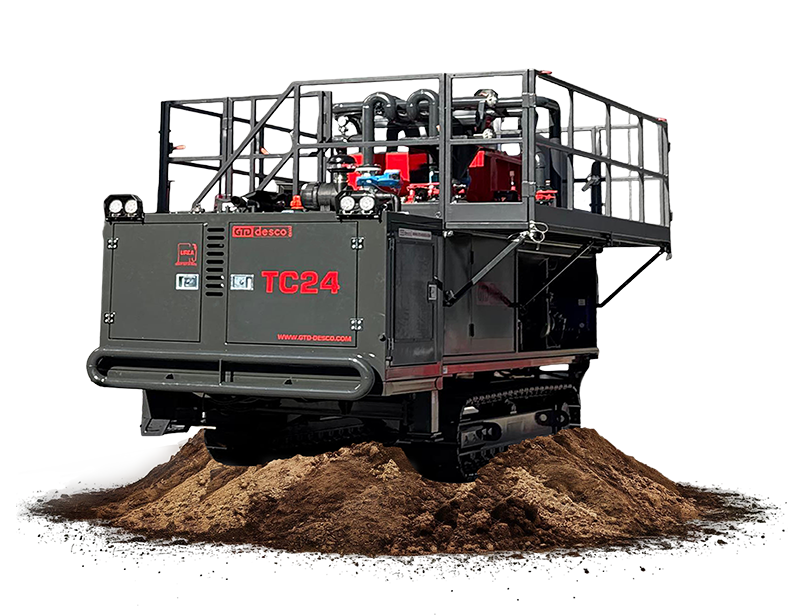

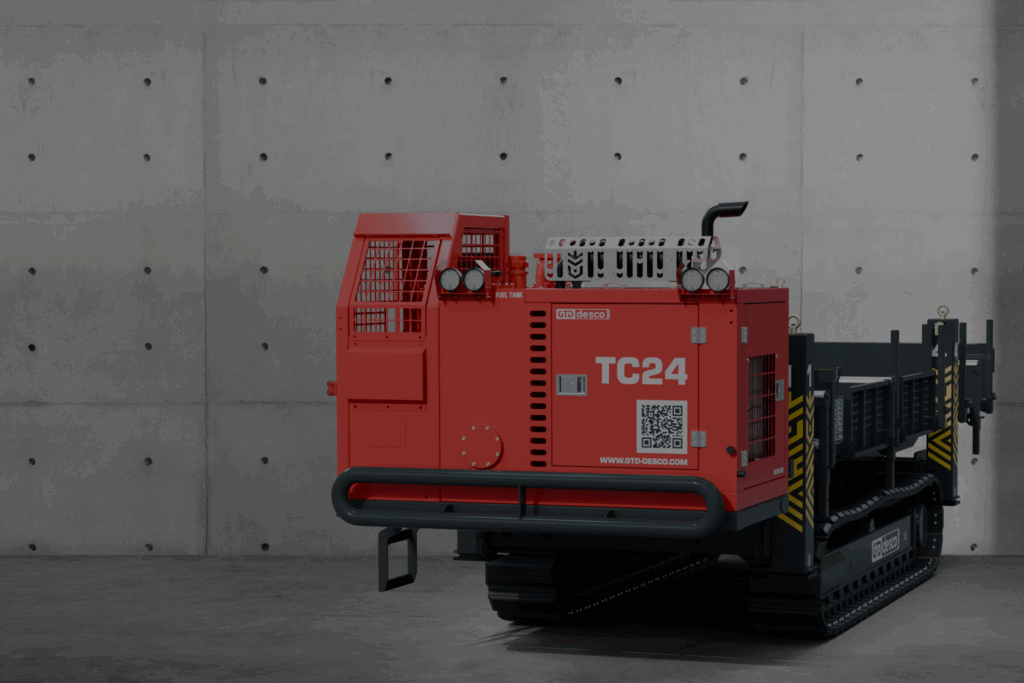

TRACKED CARRIERS
The Tracked Carrier serves as a multifunctional tool, offering the flexibility to transport a diverse range of equipment and tooling efficiently.

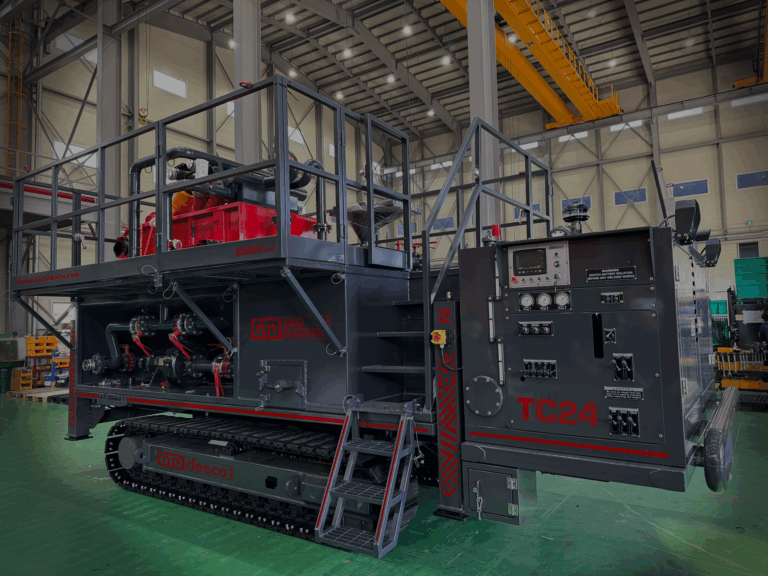

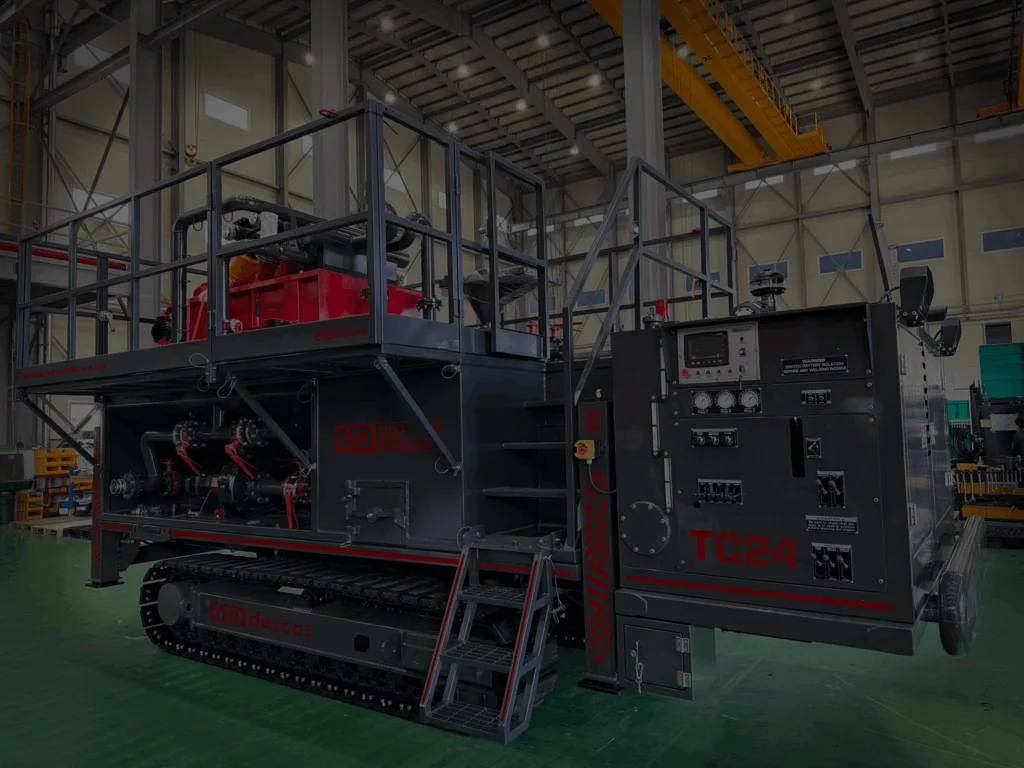

More InfoMG500 MUD GUZZLER
Proper Mud Recycling equipment is essential to the drilling operation and a key part in increased productivity.
More InfoGLOBAL PARTNERSHIPS

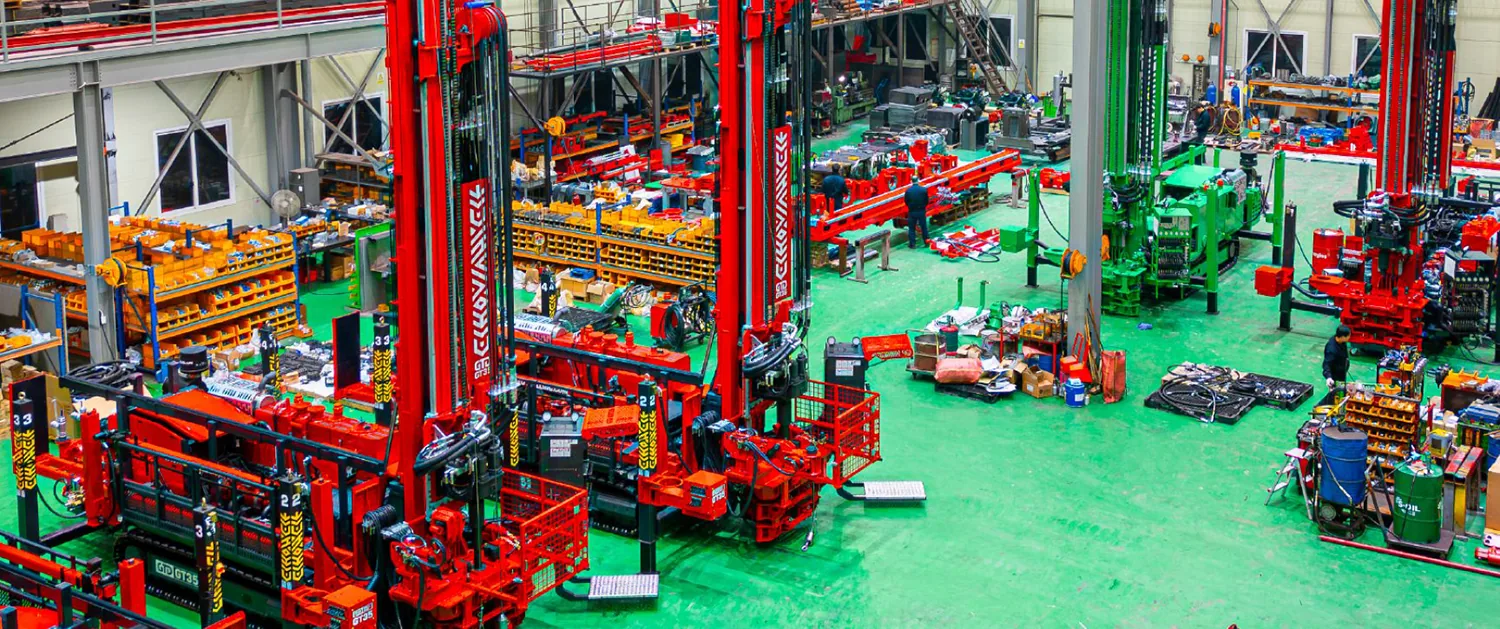

FACTORY TOUR
A behind-the-scenes tour of GTD Desco’s cutting-edge, state-of-the-art manufacturing factory and advanced R&D innovation center in South Korea, offering an in-depth look at our technology, development process, and world-class engineering capabilities.
More InfoDRILLER FOCUSED SUPPORT
Our customer support stands out because we provide not only equipment assistance but also extensive drilling support as we are Drillers too, with decades of experience we are willing to share to help with your drilling operations.
More InfoOUR STORY
We don’t just build rigs that are known for their ease of operation, efficiency, and safety. We are geothermal drillers to the core, equipped to deliver real-world drilling experience, knowledge, and specialist support service, not just for the machines but for the drilling too.
