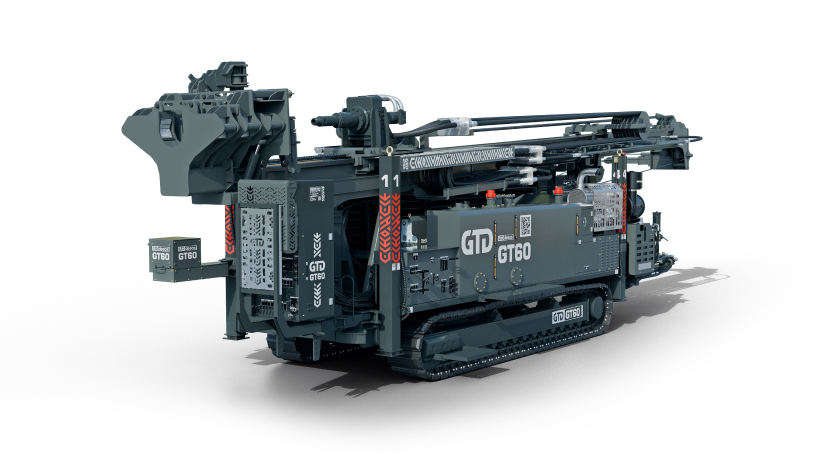

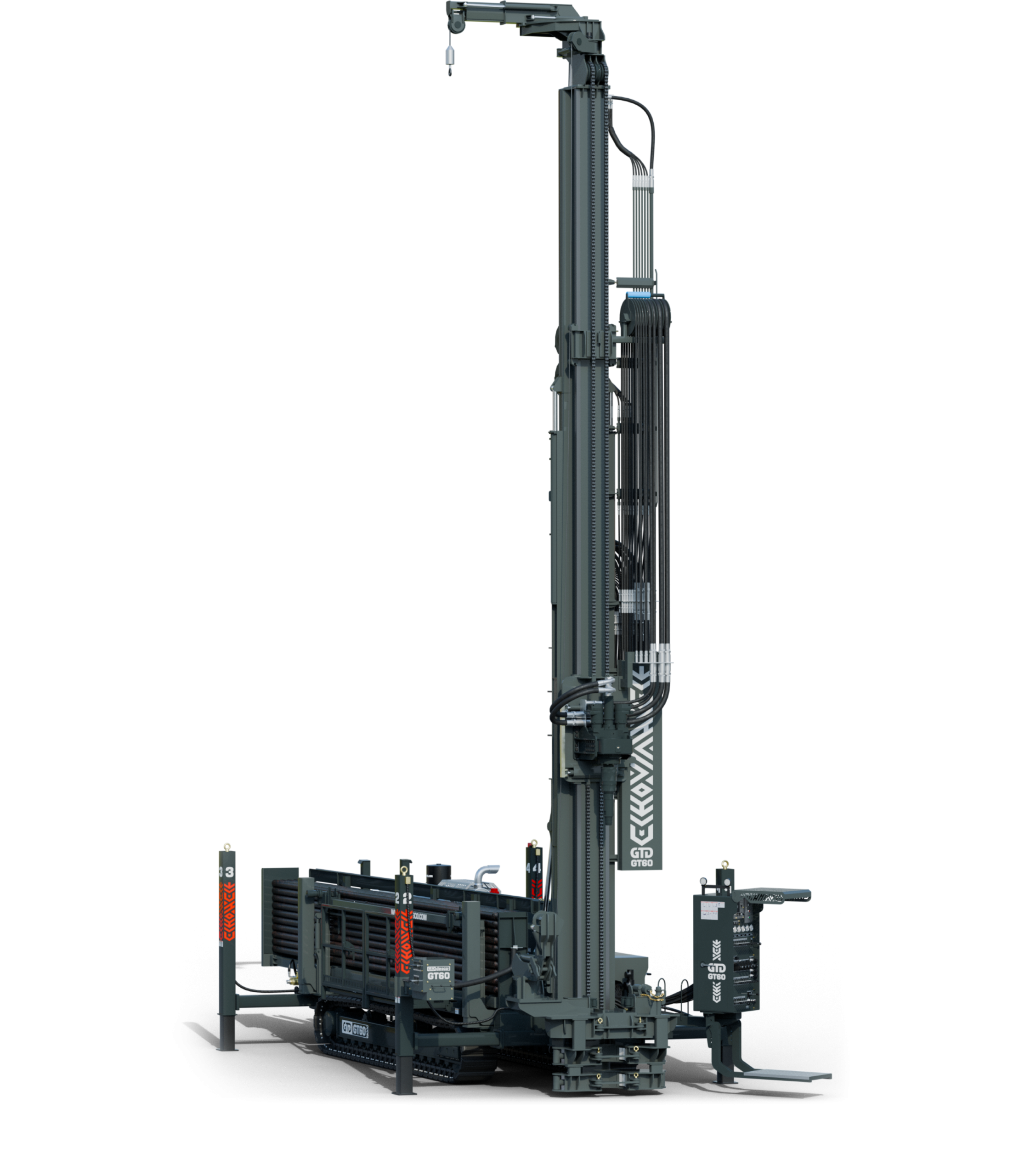

GT60 DRILL RIG

The GT60 model is designed to reach depths beyond 2,600 feet (800 meters) using mud, air, and hammer drilling methods. It is equipped with our unique rod rack and loading system, which is the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.

DOWNLOAD SPEC SHEET

GT60

  • UPTO
    66,000 LBS
    PULL-BACK
    (30,000 KG)
  • UPTO
    1,200′ (365 M)
    ON BOARD RODS
  • 513 HP (377 kW)
    CUMMINS ENGINE
  • VIEW 3D MODEL >

SPECIFICATIONS

DIMENSIONS & WEIGHT

    • Length 41′ (12.5m)
    • Width 8′ 2″ (2.5m)
    • Height 10′ 3″ (3.2m)
    • Weight 66,000 lbs – 77,000 lbs
      (30,000 kg – 35,000 kg)

    Actual weight will vary depending on the options selected and installed, e.g. Rods.

DERRICK & FEED SYSTEM

    • 55,000 – 66,000 lbs (25,000 -30,000 kg) pull-back
    • 26,455 Ibs (12,000 kg) push-down
    • 25′ (7.62 m) top head stroke

DRILL PIPE & CASING

    • 3 ½” (88.9 mm) × 25′ (or 7.62 m)
      48 rod capacity – 1,200′ (or 365 m)
    • 3 ¾” (95 mm) × 25′ (or 7.62 m)
      44 rod capacity – 1,100′ (or 335 m)
    • 4″ (101.6 mm) × 25′ (or 7.62 m)
      30 rod capacity – 750′ (or 228 m)
    • Max diameter 12 ½” (320 mm)

ROTARY DRILL HEAD - EURODRILL RH24X

    • EA61V Head Motors
    • Swivel with 2″ or 3″ thru-hole
    • 220 rpm at 3,319 lb-ft (4.5 kNm)
    • 77 rpm at 9,293 Ib-ft (12.6 kNm)
    • Floating Spindle (Shock Absorber)

CRAWLER (TRACK) BASE

    • Doosan Solar 130
    • Steel with rubber pads
    • Wireless remote travel

ENGINE

    • Cummins X12 Tier 4 (Stage 5)
    • 513 hp (377 kW)

GTD STANDARD FEATURES

    • Sideshift – Sliding Drill Head
    • Swivel & Floating Spindle Sub
    • Height Adjustable Working Table
    • Triple Clamps – One Rotating
    • Hydraulic Centralizing Rollers
    • Hydraulic Breakout Chain Wrench
    • Auxiliary Hydraulic Ports and Controls
    • Main Winch – 22,000 lbs (10,000 kg)
    • Wire/Sandline Winch
    • Water Injection Mist Pump

    • DTH Lube System
    • Rod Rack & Rod Loader
    • Hydraulic Welder & Generator (7.5Kw)
    • Self Loading Jacks/ Outriggers
    • Air Compressor: 24 cfm (673 lpm), 130 psi (9 bar)
    • Centrifugal Pump: 4x3x13 Single-stage
    • 5 x 6 Triplex Piston Pump:
      317 gpm @ 580 psi
       (1,200 lpm @ 40 bar)
    • Tablet Computer & Engine Diagnostics Software

OPTIONS

    • Hydraulic Sliding Rod Wrench
    • Angled Drilling
    • Safety Cage
