MUD RECYCLING EQUIPMENT
Process and separate up to 400 – 500 gallons per minute (1,500 – 1,900 Lpm) of drilling fluid, with a separation point of down to 15 micrometers.
KEY SPECIFICATIONS & FEATURES
DIMENSIONS & WEIGHT
- Length 20′ 9″ (6.3 m)
- Width 7′ 8″ (2.3 m)
- Height 11′ 6″ (3.5 m)
- Weight 30,800 lbs (14,000 kg)
MUD SYSTEM

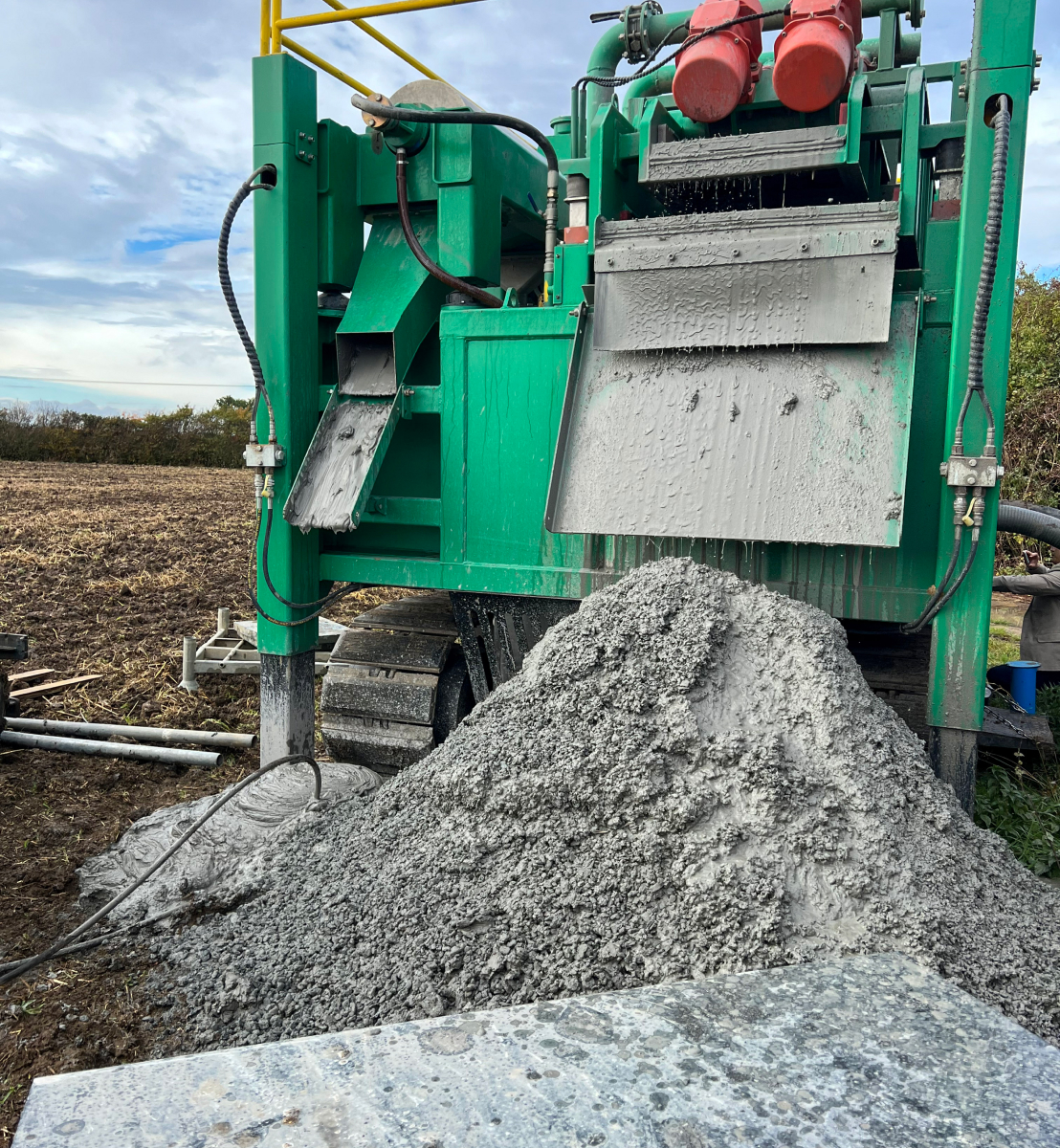

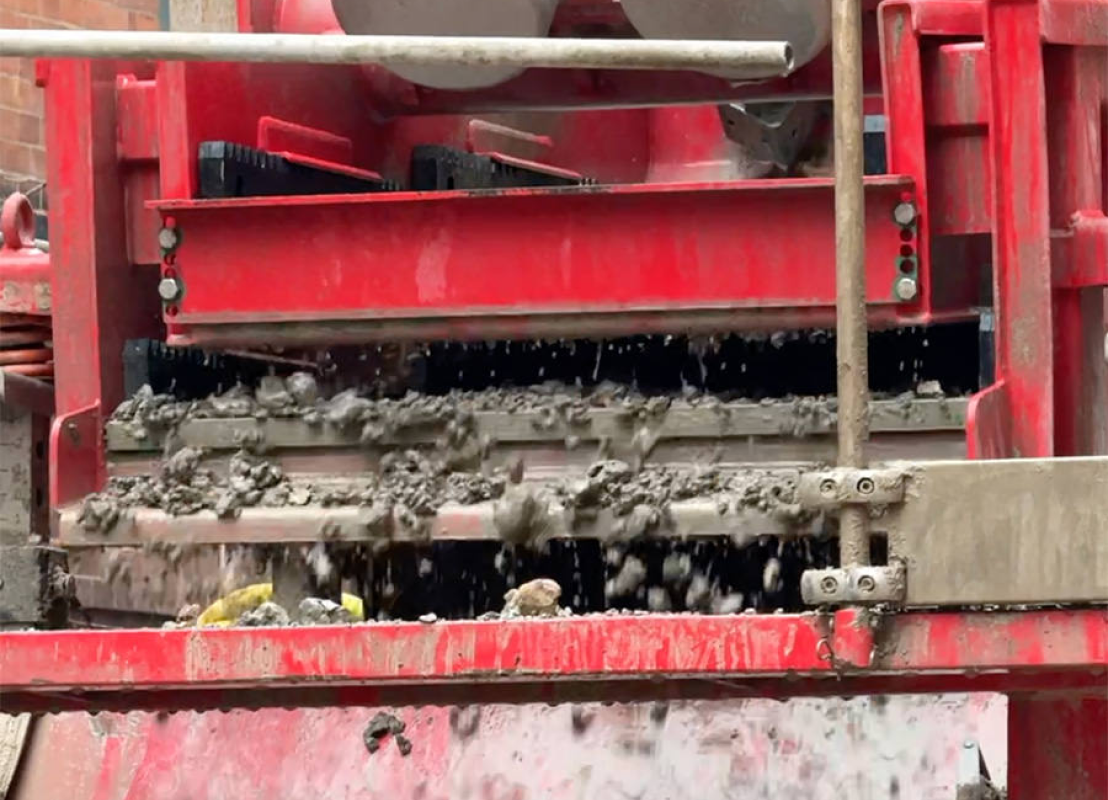

- Shale Shaker Deck: 4’ x 5½’ [2m²)

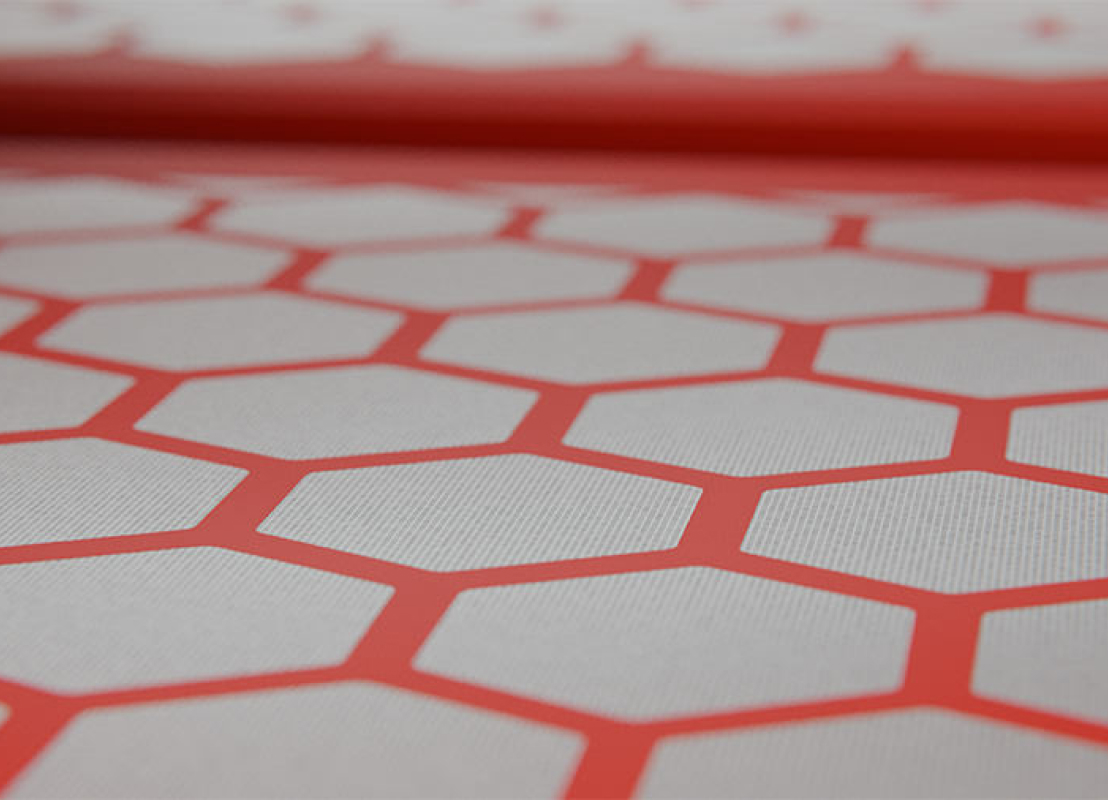

- Screens: API 40 Mesh / API 80 Mesh

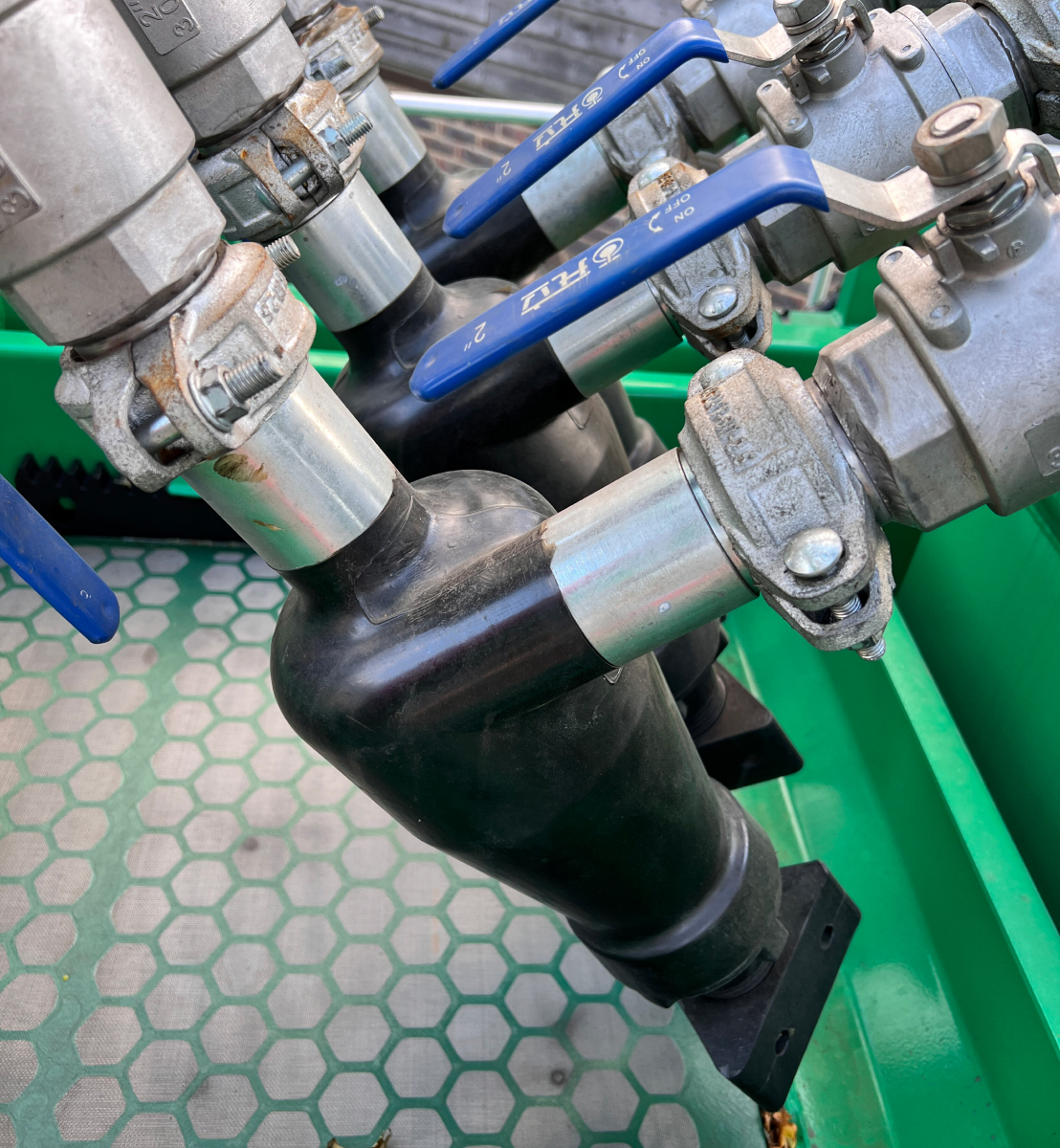

(Changeable to any mesh size) - Desilter Hydrocyclones (Cones): 4 x 5”
(Separation down to 15 micrometers) - Combined Capacity: 1,665 Gallons (6,300 Liters)
Main Tank Capacity: 925 Gallons (3,500 Liters)
Mud Mixing / Storage Tank Capacity: 740 Gallons (2,800 Liters) - Centrifugal Pump: 4x3x13 Single Stage
- V-shaped tank design (minimizes solids build-up)

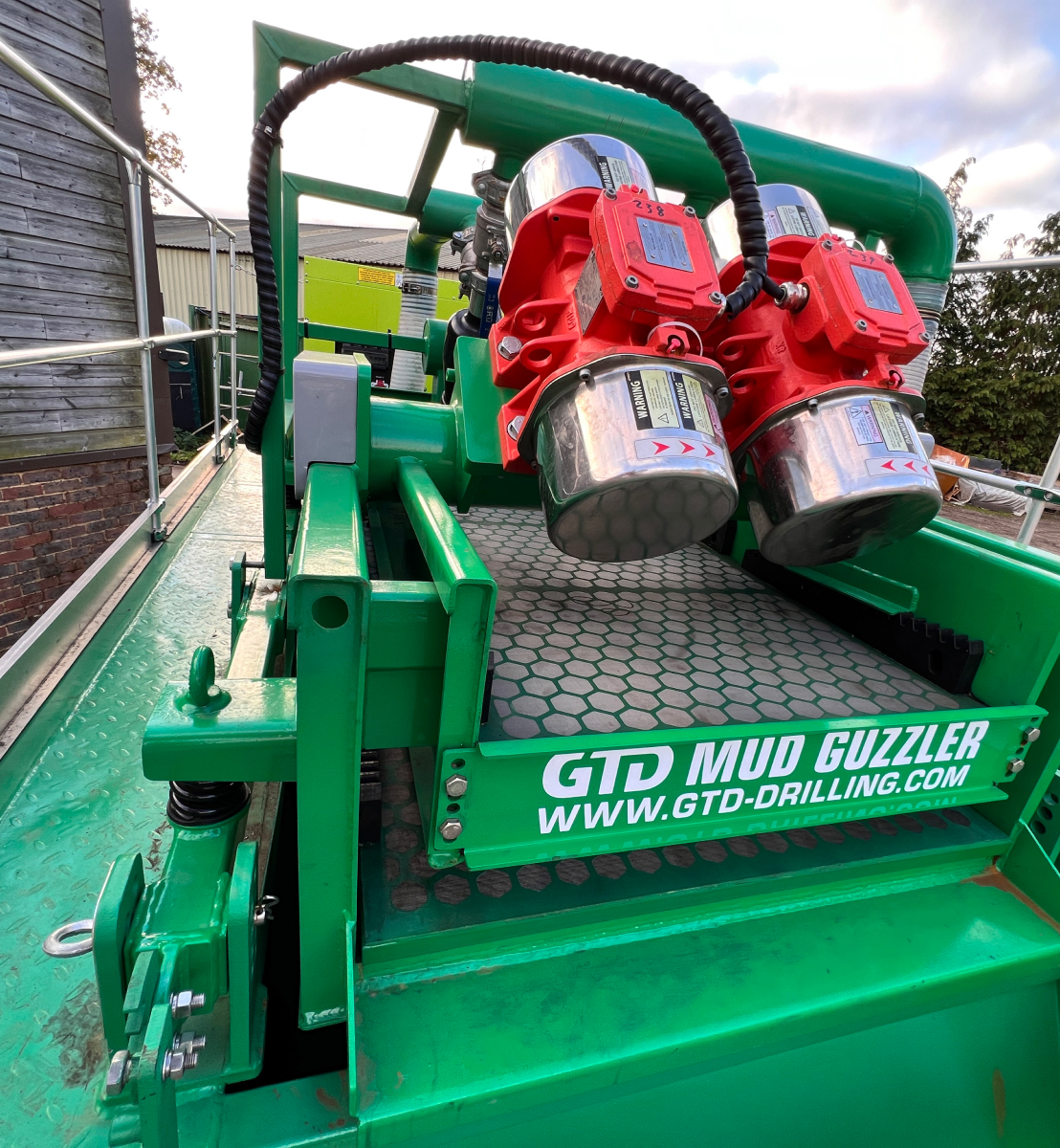

- OLI 7 G-force linear motors: For increased
processing capacity over hydraulic optical motors. - Pump back to rig capability:
For priming and supercharging mud drilling pumps. - Adjustable shaker angle of -10°/+6°:
For easy fine tuning to changes in geology. - API RP 13C Oil & Gas shaker screens:
For superior performance and reliability. - Venturi Mud Mixing Hopper
Mixes powdered mud products with ease.
TRACKED CARRIER
- Model SOLAR 75
- Tracking Speed (Lo-Hi)
1.5 mph (2.5 kmh) ～ 2.5 mph (4.0 kmh) - Gradeability 25°
- Track Width 17.7″ (450 mm)
- Steel with rubber pads
ENGINE
- Doosan DM03 (Stage V)
- 110 hp (82 kW)
- Fuel Tank 32 gal (120 liters)
- 12V DC
HYDRAULIC SYSTEM
- Flow Rate <42 gpm (<160 lpm)
- Operating Pressure 3,626 psi (250 bar)
- Hyd. Oil Tank 266 gal (100 liters)
