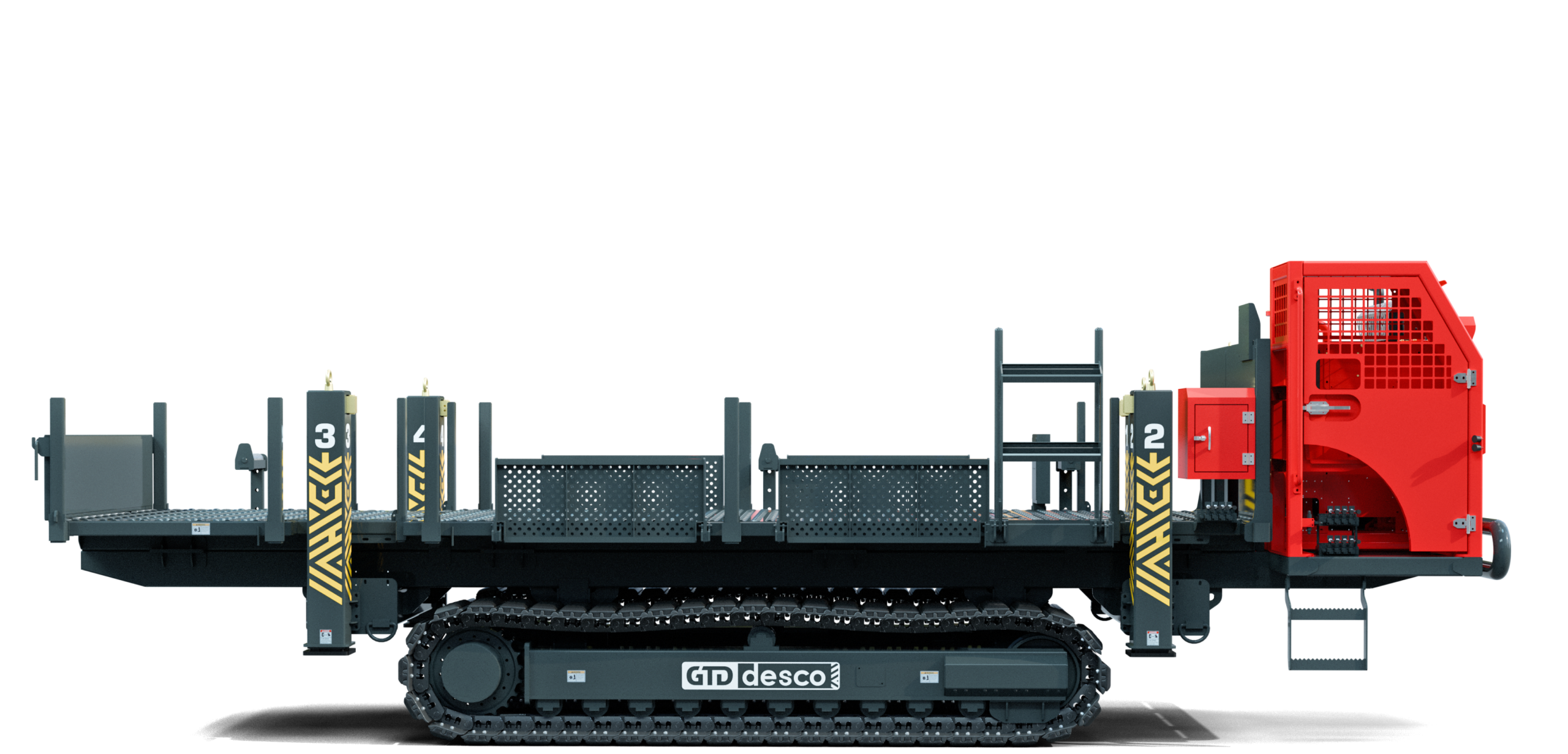

TC24 TRACKED CARRIER
The Tracked Carrier serves as a multifunctional tool, offering the flexibility to transport [and power] a diverse range of equipment and tooling efficiently. For example; our MG500 mud cleaning system, compressors, additional rods & casing and other Auxiliary equipment. It can also be fitted with a crane and rod/casing handling equipment.
Additionally, it acts as a hydraulic power pack that can power auxiliary equipment such as a piston pump, grouter and hydraulic loop reeler.
KEY SPECIFICATIONS & FEATURES
DIMENSIONS & WEIGHT
- Length 25′ (7.6 m) or 30′ 10″ (9.4 m]
- Width 7′ 2″ (2.2 m]
- Height 8′ 10″ (2.7 m)
- Deck Length 20′ (6.2 m) or 26′ 2″ (8 m]
- Weight 16,500 lbs – 22,000 lbs
(7,500 kg – 10,000 kg)
Actual weight will vary depending on the options
selected and installed, e.g. Crane…
CRAWLER (TRACK) BASE
- Model SOLAR 75
- Tracking Speed (Lo-Hi)
1.5 mph (2.5 kmh} ~ 2.5 mph (4.0 kmh) - Gradeability 25°
- Loading Capacity 26,455 Ibs (12,000 kg)
- Track Width 17.7″ (450 mm)
- Steel with rubber pads
ENGINE
- Doosan DM03 (Stage V)
- 110 hp (82 kW]
- Fuel tank 32 gal (120 litres)
- 12V DC
HYDRAULIC SYSTEM
- Flow Rate <42 gpm (<160 Ipm]
- Operating Pressure 3,626 psi (250 bar]
- Hyd. Oil Tank 266 gal (100 litres]
OPTIONS
- Auxiliary Power Pack
- Self Loading system
- Tooling Loading Rollers
- Crane
- HIAB
- Tooling Grab
- Aux fuel tank
- Driver cab
SPECS CAN BE INFORMATIVE...VIDEOS PROVIDE EVIDENCE...
It's why we share real-world drilling footage to validate why our equipment is the No.1 choice for geothermal industry leaders. See for yourself below:
GLOBAL PARTNERSHIPS
DRILLER FOCUSED SUPPORT
Our customer support stands out because we provide not only equipment assistance but also extensive drilling support as we are Drillers too, with decades of experience we are willing to share to help with your drilling operations.

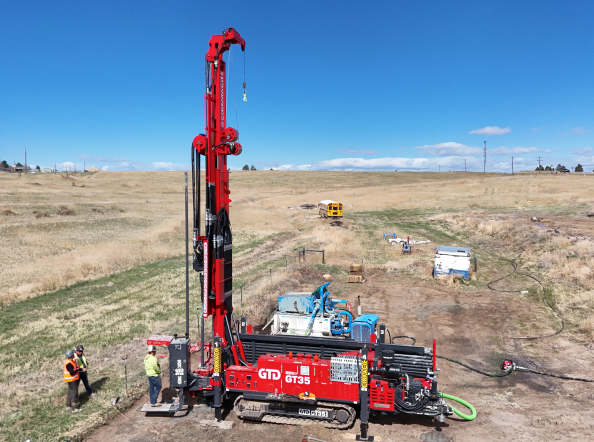

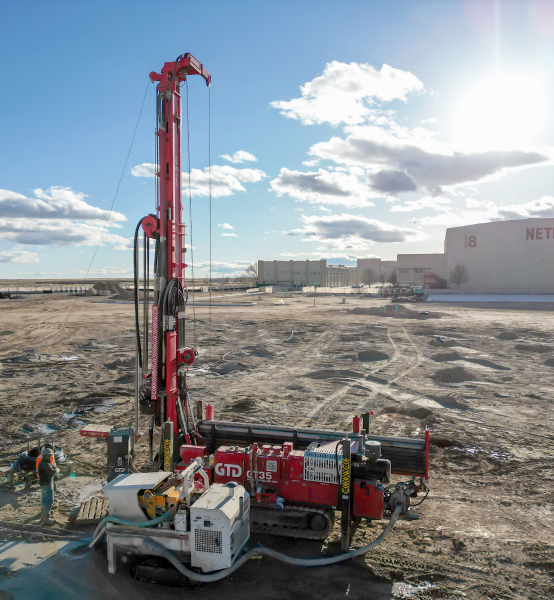

More InfoGEOTHERMAL DRILLING RIGS
The GT series are proven for their high
productivity in Geothermal and Water Well
drilling in both domestic and commercial use.

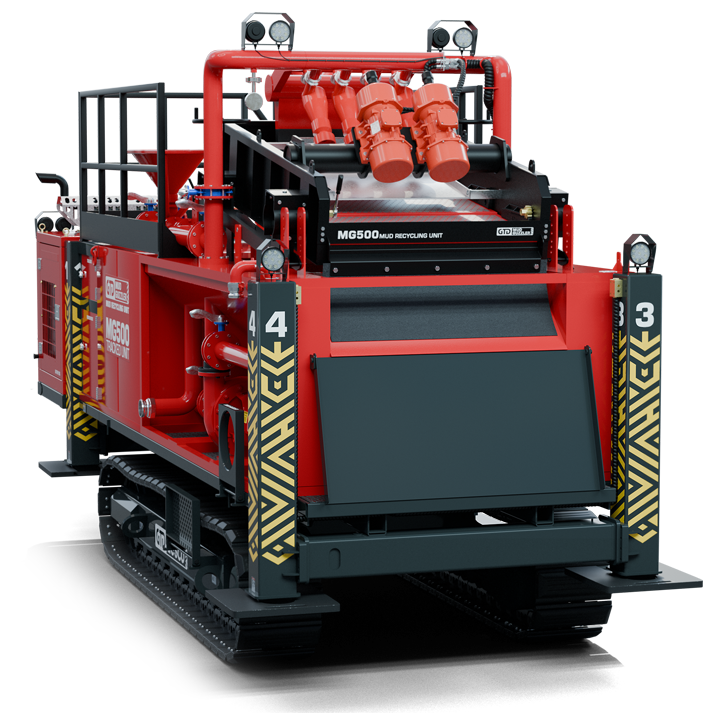

MUD RECYCLING EQUIPMENT
