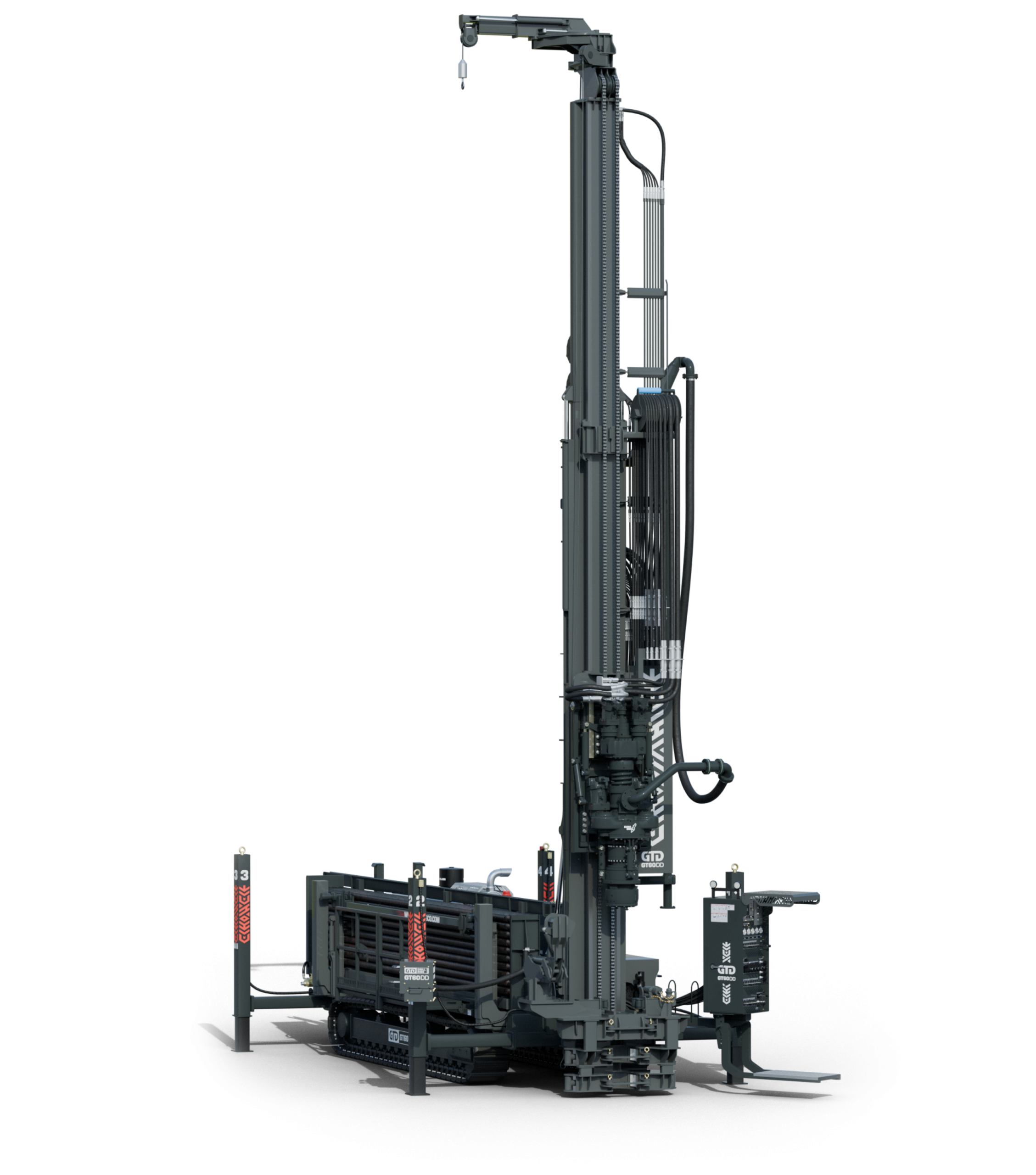

GT60DD DRILL RIG
The GT60DD builds on the trusted performance of our GT series, offering unparalleled efficiency in geothermal drilling for both domestic and commercial applications, with the innovative double-headed design ensuring borehole stability even in the most challenging formations and the capability to
reach depths beyond 2,600 feet (800 meters).
GT60DD
-
UPTO
66,000 LBS
PULL-BACK
(30,000 KG) -
UPTO
960′ (288 M)
ON BOARD RODS -
513 HP (377 kW)
CUMMINS ENGINE - VIEW 3D MODEL >
SPECIFICATIONS
DIMENSIONS & WEIGHT
- Length 41′ (12.5m)
- Width 8′ 2″ (2.5m)
- Height 10′ 3″ (3.2m)
- Weight 66,000 lbs – 77,000 lbs
(30,000 kg – 35,000 kg)
Actual weight will vary depending on the options selected and installed, e.g. Rods..
DERRICK & FEED SYSTEM
- 55,000 – 66,000 lbs (25,000 -30,000 kg) pull-back
- 26,455 Ibs (12,000 kg) push-down
- 24′ 6″ (7.5 m) top head stroke
DRILL PIPE & CASING
- 3 ½” (88.9 mm) × 20′ (or 6 m)
48 rod capacity – 960′ (or 288 m) - 3 ¾” (95 mm) × 20′ (or 6 m)
44 rod capacity – 880′ (or 264 m) - 4″ (101.6 mm) × 25′ (or 7.62 m)
30 rod capacity – 600′ (or 180 m) - Max diameter 12 ½” (320 mm)
ROTARY DRILL HEAD - EURODRILL RH24X
- EA61V Head Motors
- Swivel with 2″ or 3″ thru-hole
- 220rpm at 3,319 lb-ft (4.5 kNm)
- 77rpm at 9,293 Ib-ft (12.6 kNm)
- Floating Spindle (shock absorber]
CASING HEAD - EURODRILL RH40X
- Rotation: 180 rpm
- Torque 29,500 lb-ft (40 kNm)
- Chuck: 3½” (89 mm), 5″ (152 mm),
6″ (168 mm),
7″ (178 mm), - Dual Head Tip Out System
- Head 30° Angled Tip Out System
- Diverter: 4″ (102 mm) with Hydraulic adjustable compression
ENGINE
- Cummins X12 Teir 4 (Stage 5)
- 513 hp (377 kW)
CRAWLER (TRACK) BASE
- Doosan Solar 130
- Steel with rubber pads
- Wireless remote travel
GTD STANDARD FEATURES
- Sliding & Tilting Drill Head
- Swivel & Floating Spindle Sub
- Height Adjustable Working Table
- Triple Clamps – One Rotating
- Hydraulic Centralizing Rollers
- Hydraulic Breakout Chain Wrench
- Auxiliary Hydraulic Ports and Controls
- Main Winch – 22,000 lbs (10,000 kg)
- Wire/Sandline Winch
- Water Injection Mist Pump
- DTH Lube System
- Rod Rack & Rod Loader
- Hydraulic Welder & Generator (7.5Kw)
- Self Loading Jacks/ Outriggers
- Air Compressor: 24 cfm (673 lpm), 130 psi (9 bar)
- Centrifugal Pump: 4x3x13 Single-stage
- 5 x 6 Triplex Piston Pump:
317 gpm @ 580 psi (1200 lpm @ 40 bar) - Tablet Computer & Engine Diagnostics Software
OPTIONS
- Hydraulic Sliding Rod Wrench
- Angled Drilling
- Safety Cage
SPECS CAN BE INFORMATIVE...VIDEOS PROVIDE EVIDENCE...
It's why we share real-world drilling footage to validate why our equipment is the No.1 choice for geothermal industry leaders. See for yourself below:
OUR GT SERIES MODEL LINE UP
The GT series drill rigs are proven for their high productivity in Geothermal and Water Well drilling in both domestic and commercial use. From our flagship Double-Head rig, featuring a Cummins X12 engine, to our smallest compact rig with Doosan power. All models are versatile machines, with full capability for Mud, Air or DTH drilling.
GT60
- UPTO 66,000 LBS PULL-BACK (30,000 KG)
- UPTO 1,200' (365 M) ON BOARD RODS
- 513 HP (377 kW) CUMMINS ENGINE
- MORE INFO >
GT45
- 46,300 LBS PULL-BACK (21,000 KG)
- UPTO 880' (264 M) ON BOARD RODS
- 380 HP (283 kW) CUMMINS ENGINE
- MORE INFO >
GT35
- 35,274 LBS PULL-BACK (16,000 KG)
- UPTO 880' (264 M) ON BOARD RODS
- 290 HP (213 kW) DOOSAN ENGINE
- MORE INFO >
GT25
- 24,250 LBS PULL-BACK (11,000 KG)
- UPTO 600' (200 M) ON BOARD RODS
- 192 HP (141 kW) DOOSAN ENGINE
- MORE INFO >
DOUBLE HEAD DRILL RIGS
GT60DD
- UPTO 66,000 LBS PULL-BACK (30,000 KG)
- UPTO 960' (288 M) ON BOARD RODS
- 513 HP (377 kW) CUMMINS ENGINE
- MORE INFO >
GT45DD
- UPTO 45,194 LBS PULL-BACK (25,500 KG)
- UPTO 800' (240 M) ON BOARD RODS
- 380 HP (283 kW) CUMMINS ENGINE
- MORE INFO >
ALL GT SERIES DOUBLE HEAD RIGS ARE FITTED WITH EURODRILL HEADS AS STANDARD, WIDELY ACCEPTED AS THE BEST ON THE MARKET
