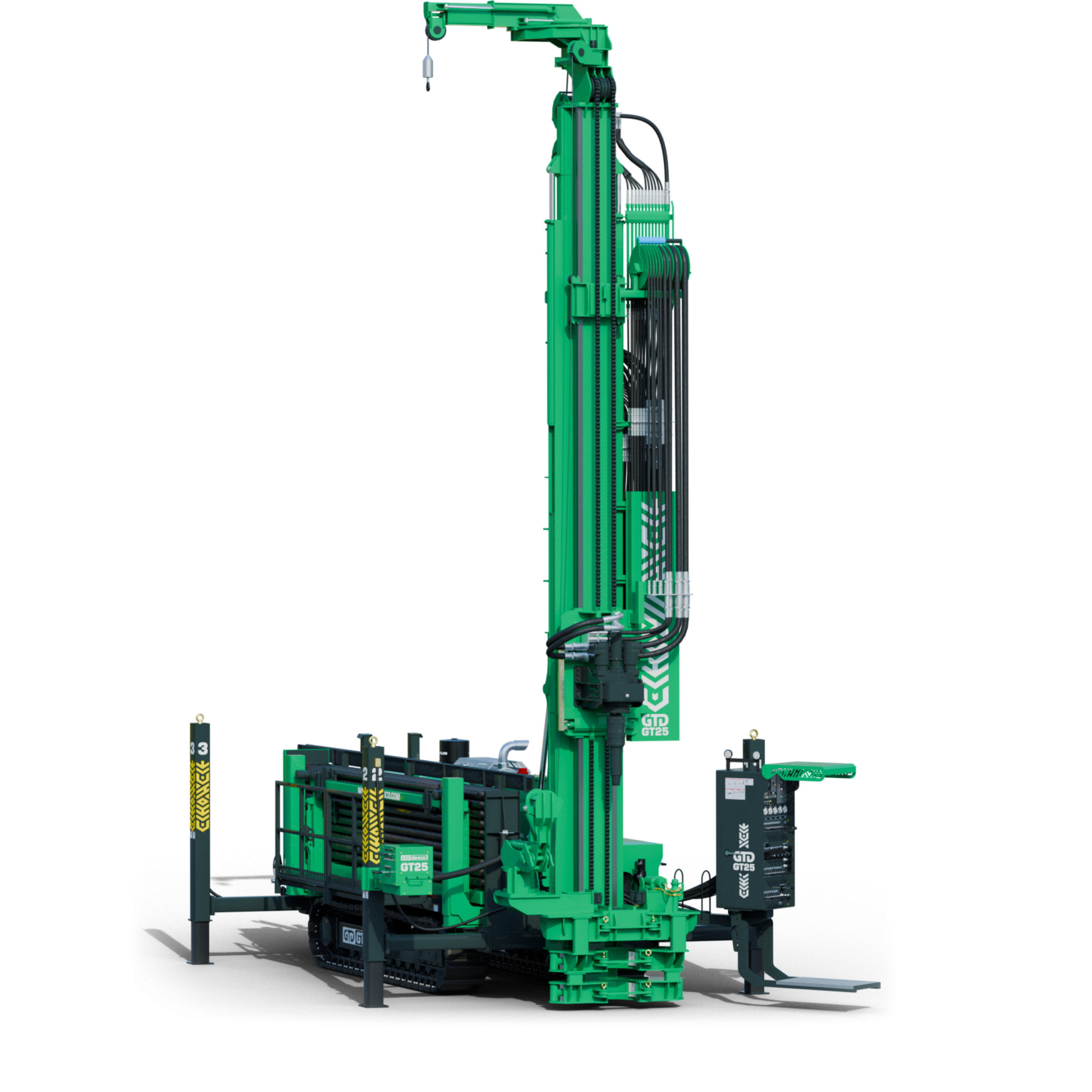

GT25 DRILL RIG

The GT25 model is designed to reach depths beyond 1,000 feet (300 meters) using mud, air, and hammer drilling methods. It is equipped with our unique rod rack and loading system, which is the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.

DOWNLOAD SPEC SHEET

GT25

35,274 LBS

PULLBACK
(16,000 KG)
880′ (264 M)

ON BOARD RODS
290 HP (213 kW)

DOOSAN ENGINE
VIEW 3D MODEL >

SPECIFICATIONS

DIMENSIONS & WEIGHT

Length 32′ 2″ (9.8 m)
Width 7′ 4″ (2.3 m)
Height 8′ 6″ (2.6 m)
Weight 30,000 lbs – 36,350 lbs (13,500 kg – 16,500 kg)

Actual weight will vary depending on the options selected and installed, e.g. Rods / Pipe…

DERRICK & FEED SYSTEM

24,250 lbs (11,000 kg) pull-back
11,000 Ibs (5,000 kg) push-down
18′ (5.5 m) top head stroke

DRILL PIPE & CASING

3 ½” (88.9 mm) × 15′ (or 5 m) 40 rod capacity – 600′ (or 200 m)
3 ¾” (95 mm) × 15′ (or 5 m) 36 rod capacity – 540′ (or 180 m)
Max diameter 11″ (280 mm)

ENGINE

Doosan DL06 Tier 4 (Stage 5)
192 hp (141.2 kW)

ROTARY DRILL HEAD

Variable twin Eaton motor head with 2.4″ (60 mm) thru-hole
0-100 rpm @ 6,195 lb-ft (8.4 kNm)
0-200 rpm @ 3,097 lb-ft (4.2 kNm)

CRAWLER (TRACK) BASE

Doosan Solar 55
Steel with rubber pads
Wireless remote travel

GTD STANDARD FEATURES

Sideshift – Sliding Drill Head
Swivel & Floating Spindle Sub
Height Adjustable Working Table
Double Clamps – One Rotating
Hydraulic Centralizing Rollers
Hydraulic Breakout Chain Wrench
Auxiliary Hydraulic Ports and Controls

Main Winch
Water Injection Mist Pump
DTH Lube System
Rod Rack & Rod Loader
Self Loading Jacks/ Outriggers
Tablet Computer & Engine Diagnostics Software

OPTIONS

Wire/Sandline Winch
Hydraulic Sliding Rod Wrench
Triple Clamps
Angled Drilling
Safety Cage
Air Compressor:24 cfm (673 lpm), 130 psi (9 bar)
4 x 5 Triplex Piston Pump:211 gpm @ 500 psi (800 lpm @ 35 bar)
Caprari Centrifugal Pump:3 x 2.5 x 11 Multi-stage – 230 psi (16 bar)
