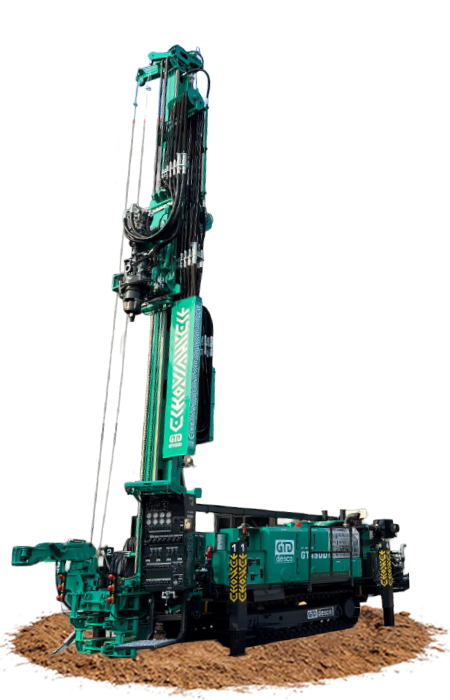

GT45DR DRILL RIG
The GT45DR geothermal & water well drill rig is designed to reach depths beyond 850ft using mud, air, and hammer drilling methods. It is equipped with our unique rod rack and loading system, which is the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.
The GT series of drill rigs are known for their high productivity and reliability in geothermal drilling, with proven performance in both domestic and commercial applications around the world. These rigs are the number one choice for leading industry professionals, thanks to their versatility and ability to handle a variety of drilling conditions with precision and efficiency.
GT45DR
-
46,000 LBS
PULL-BACK -
380HP
CUMMINS ENGINE -
20FT DRILL RODS
880FT ON BOARD RODS -
EURODRILL TOP DRIVE – RH16X
TORQUE OF 11,897 LB-FT
SPECIFICATIONS
DIMENSIONS & WEIGHT
- Length 39′ 8″ (12.1 m)
- Width 7′ 11″ (2.41 m)
- Height 10′ 5″ (3.2 m)
- Weight 46,000 lbs – 60,000 lbs
(21,000 kg – 27,000 kg)
Actual weight will vary depending on the options selected and installed, e.g. Rods..
DERRICK & FEED SYSTEM
- 45,194 lbs (20,500 kg) pull-back
- 18,740 Ibs (8,500 kg) push-down
- 21′ 4″ (6.5 m) top head stroke
DRILL PIPE & CASING
- 3 ¾” (95 mm) × 20′ (or 6 m)
- 36 rod capacity – 800′ (240 m]
- Max diameter 12 ½” (320 mm)
ROTARY DRILL HEAD - EURODRILL RH16X
- Eurodrill Head Motors
- Swivel with 2″ thru-hole
- Rotation: 200 rpm
- Torque: 8,850 lb-ft (12 kNm)
- Floating Spindle (Shock Absorber]
CASING HEAD - EURODRILL RH26
- Rotation: 125 rpm
- Torque 14,976 lb-ft (20.3 kNm)
- Chuck: 3½” (89 mm), 5″ (152 mm), 6″ (168 mm),
7″ (178 mm) - Dual Head Tip Out System
- Head 30° Angled Tip Out System
- Diverter: 4″ (102 mm)
with Hydraulic adjustable compression
ENGINE
- Cummins L9 (Stage 5)
- 380 hp (283 kW)
CRAWLER (TRACK) BASE
- Doosan Solar 130
- Steel with rubber pads
- Wireless remote travel
GTD STANDARD FEATURES
- Sliding & Tilting Drill Head
- Swivel & Floating Spindle Sub
- Height Adjustable Working Table
- Triple Clamps – One Rotating
- Hydraulic Centralizing Rollers
- Hydraulic Breakout Chain Wrench
- Auxiliary Hydraulic Ports and Controls
- Main Winch – 11,000 lbs – (5,000 kg)
- Wire/Sandline Winch – 300m / 8mm (1000ft / ¼”)
- Water Injection Mist Pump – MP75
- DTH Lube System
- Rod Rack & Rod Loader
- Self Loading Jacks/ Outriggers
- Hydraulic Welder & Generator (7.5Kw)
- Self Loading Jacks/ Outriggers
- Air Compressor: 24 cfm (673 lpm) 130 psi (9 bar)
- Centrifugal Pump: 4x3x13 Single-stage or Multistage
- 5 x 6 Triplex Piston Pump:
317 gpm @ 580 psi (1,200 lpm @ 40 bar) - Tablet Computer & Engine Diagnostics Software
OPTIONS
- Hydraulic Sliding Rod Wrench
- Angled Drilling
- Safety Cage
SPECS CAN BE INFORMATIVE...VIDEOS PROVIDE EVIDENCE...
It's why we share real-world drilling footage to validate why our equipment is the No.1 choice for geothermal industry leaders. See for yourself below:
OUR GT SERIES MODEL DRILL RIGS
The GT series drill rigs are proven for their high productivity in Geothermal and Water Well drilling in both domestic and commercial use. From our flagship Double-Head rig, featuring a Cummins X12 engine, to our smallest compact rig with Doosan power. All models are versatile machines, with full capability for Mud, Air or DTH drilling.
SINGLE HEAD DRILL RIGS
GT65
- 65,000 LBS PULL-BACK
- 513HP CUMMINS ENGINE
- 25FT DRILL RODS 1,200FT ON BOARD RODS
- EURODRILL TOP DRIVE - RH24X TORQUE OF 17,700 LB-FT
- DRILL BEYOND 1,000FT
- MORE INFO >

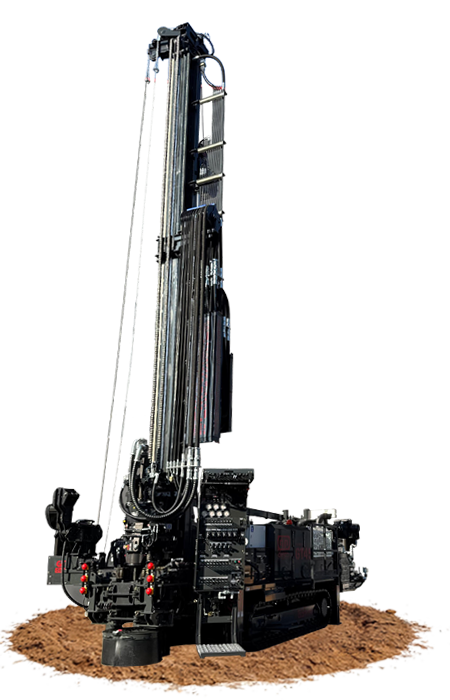

GT45
- 46,000 LBS PULL-BACK
- 380HP CUMMINS ENGINE
- 20FT DRILL RODS 880FT ON BOARD RODS
- EURODRILL TOP DRIVE - RH16X TORQUE OF 11,897 LB-FT
- DRILL BEYOND 850FT
- MORE INFO >
GT35
- 35,000 LBS PULL-BACK
- 290HP DOOSAN ENGINE
- 20FT DRILL RODS 880FT ON BOARD RODS
- DRILL BEYOND 650FT
- MORE INFO >
DOUBLE HEAD DRILL RIGS
GT65DR
- 65,000 LBS PULL-BACK
- 513HP CUMMINS ENGINE
- 25FT DRILL RODS 960FT ON BOARD RODS
- EURODRILL TOP DRIVE - RH24X TORQUE OF 17,700 LB-FT
- DRILL BEYOND 1000ft
- MORE INFO >
GT45DR
- 45,000 LBS PULL-BACK
- 380HP CUMMINS ENGINE
- 25FT DRILL RODS 800FT ON BOARD RODS
- EURODRILL TOP DRIVE - RH16X TORQUE OF 14,976 LB-FT
- DRILL BEYOND 850ft
- MORE INFO >
THE GT65DR, GT45DR, GT65 and GT45 RIGS ARE ALL FITTED WITH EURODRILL HEADS AS STANDARD, WIDELY ACCEPTED AS THE BEST ON THE MARKET
EXPLORATION DRILL RIGS
The RC65DR builds on the trusted performance of our GT SERIES, offering unparalleled efficiency and safety in Exploration drilling. With the innovative double-headed design, the RC65DR ensures borehole stability even in the most challenging formations and able to reach depths beyond 2,600 feet (800 m).
The RC65DR comes complete with our unique rod rack and loading system, the most robust, reliable, and safest rod handling system on the market, ensuring maximum safety and efficiency in all drilling operations.
MORE INFO

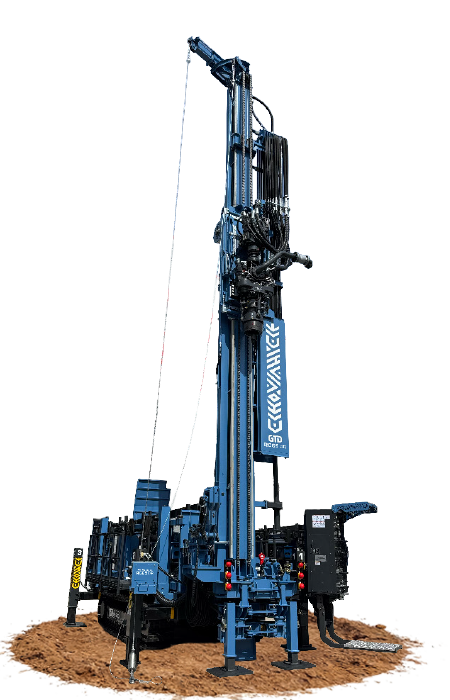

RC65DR
- 65,000 LBS PULL-BACK
- 513HP CUMMINS ENGINE
- 20FT DRILL RODS 600FT ON BOARD RODS
- EURODRILL TOP DRIVE - RH24X TORQUE OF 9,293 LB-FT
- DRILL BEYOND 1000ft
- MORE INFO >
GLOBAL PARTNERSHIPS
DRILLER FOCUSED SUPPORT
Our customer support stands out because we provide not only equipment assistance but also extensive drilling support as we are Drillers too, with decades of experience we are willing to share to help with your drilling operations.
More InfoTRACKED CARRIERS

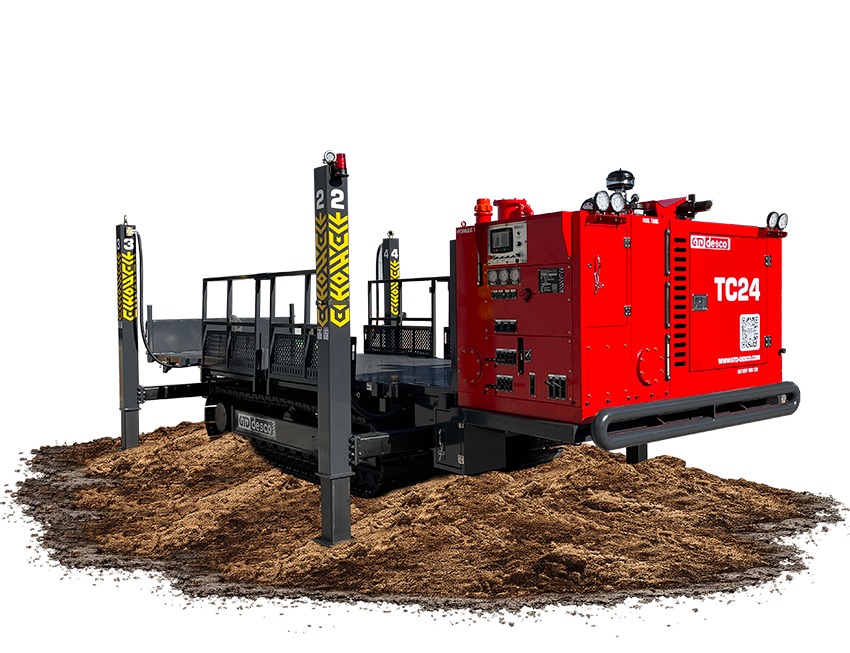

TC24 Tracked Carriers serve as a highly versatile and truly multifunctional tool, providing exceptional flexibility to efficiently transport and reliably power a wide variety of equipment, attachments, and specialized tooling across different jobs, while maintaining strong performance, stability, and operational efficiency.
